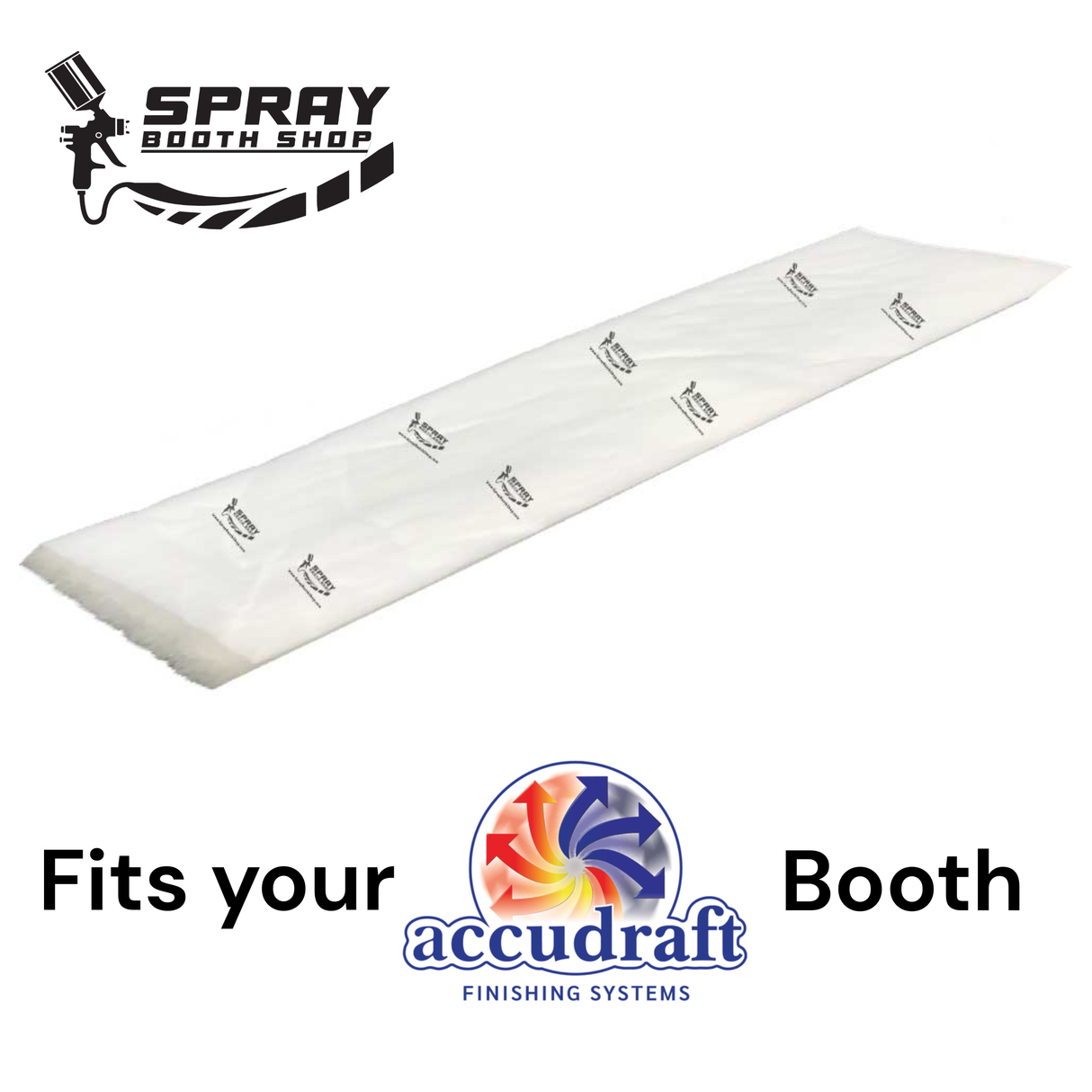

Accudraft Ceiling Filter Blanket – F5 Tackified Polyester – Fits TITAN, ITALIA, MX Series

Engineered to drop into Accudraft downdraft and semi-downdraft ceiling plenums right out of the box, this F5-grade tackified polyester ceiling filter is cut to the standard sizes used across the TITAN, ITALIA, ITALIA Alto, MX300, MX400, PRO Series, and SS Spray, Flash and Cure lines. Accudraft's TITAN is waterborne-optimized with EnergySmart VFD control, and the ITALIA has been in production for over 40 years, so clean F5 ceiling intake is what keeps their airflow envelope on spec.

Key Features

• Captures 90%+ of particles over 10 microns, keeping overspray out of your exhaust stage and off the finish.
• 600 g/m² media at 20mm thickness for high dust-holding capacity and long service life.
• Progressive, gradient construction increases fiber density toward the clean-air side and traps fine particles deeper in the media.
• Impregnated tackifier throughout bonds paint particles to the media instead of releasing them downstream.
• Heat-sealed 9-gauge support frame holds shape under load and resists sagging at peak airflow.
• Rated for 0.25 m/s face velocity, matched to booth ceiling-plenum airflow.
• Cut to standard Accudraft ceiling-bank sizes for a drop-in fit, with custom sizes available for non-standard banks.

Best For

• Automotive collision and refinish
• Fleet maintenance painting
• Light industrial and aerospace component finishing
• Any Accudraft downdraft installation that needs F5 or EU5-grade ceiling intake filtration

Usage & Care

Replace ceiling filters every 3 to 6 months depending on production volume and paint type. High-volume waterborne shops on TITAN booths typically change every 3 months, while lower-volume solvent shops may extend to 6 months. Inspect monthly for loading and check the pressure differential at the booth control panel.
