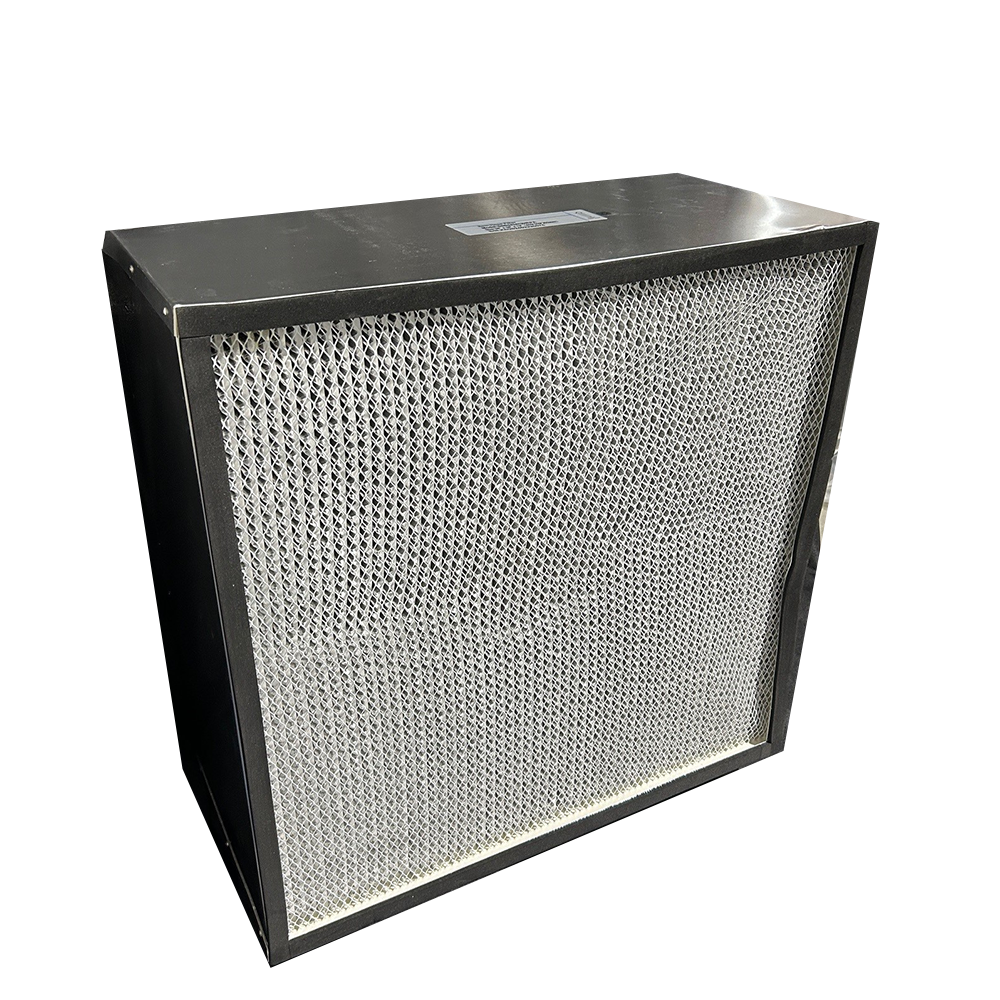

Paint Booth HEPA Filter – Premium H13, 24x24x12 – Final-Stage Filtration

The last stage of filtration, for booths and rooms that need the cleanest air. This 24 x 24 x 12 H13 HEPA filter has a rigid aluminum frame and a large pleated media pack, and it ships the same day when ordered by 2pm MT.

The Premium H13 HEPA Filter delivers H13-grade filtration, capturing the finest airborne particles, including paint overspray, for exceptionally clean air. Built with ultrafine, high-density glass fiber media in a durable aluminum frame, it is made for final-stage filtration in spray and powder booths.

A HEPA filter only works as the final stage. Put it behind good pre-filters and it lasts a long time; ask it to catch coarse dust or overspray by itself and it loads quickly. It is changed on pressure, not on a calendar.

Key Features

• H13 filtration grade: final-stage capture of fine particles.
• Ultrafine glass fiber media: high-density construction for maximum dust-holding capacity.
• Large filter area: 9.46 m2 of extended surface area for longer service life.
• Aluminum frame: rigid, durable, and long-lasting.
• Airflow capacity: rated for 1,700 m3/h at stable pressure.
• Dimensions: 24 x 24 x 12 inches.
• Pressure drop: 250 Pa initial and 500 Pa final.

Best For

• Final HEPA stage in powder coating booths
• Final-stage filtration in spray booths and clean prep rooms
• Automotive and industrial finishing

Compatibility

• GFS powder non-recovery booths (final HEPA)
• Any housing that takes a 24 x 24 x 12 HEPA filter. Check the depth: 12 inch housings will not take a shallower filter without gaps.

Usage & Care

• Replace when the pressure across the filter reaches the 500 Pa final rating (about 2 inches w.g.), not on a fixed schedule.
• Handle by the frame only. A finger through the pleats makes a hole the air will find.
• Seat the gasket evenly so no air bypasses the filter.
