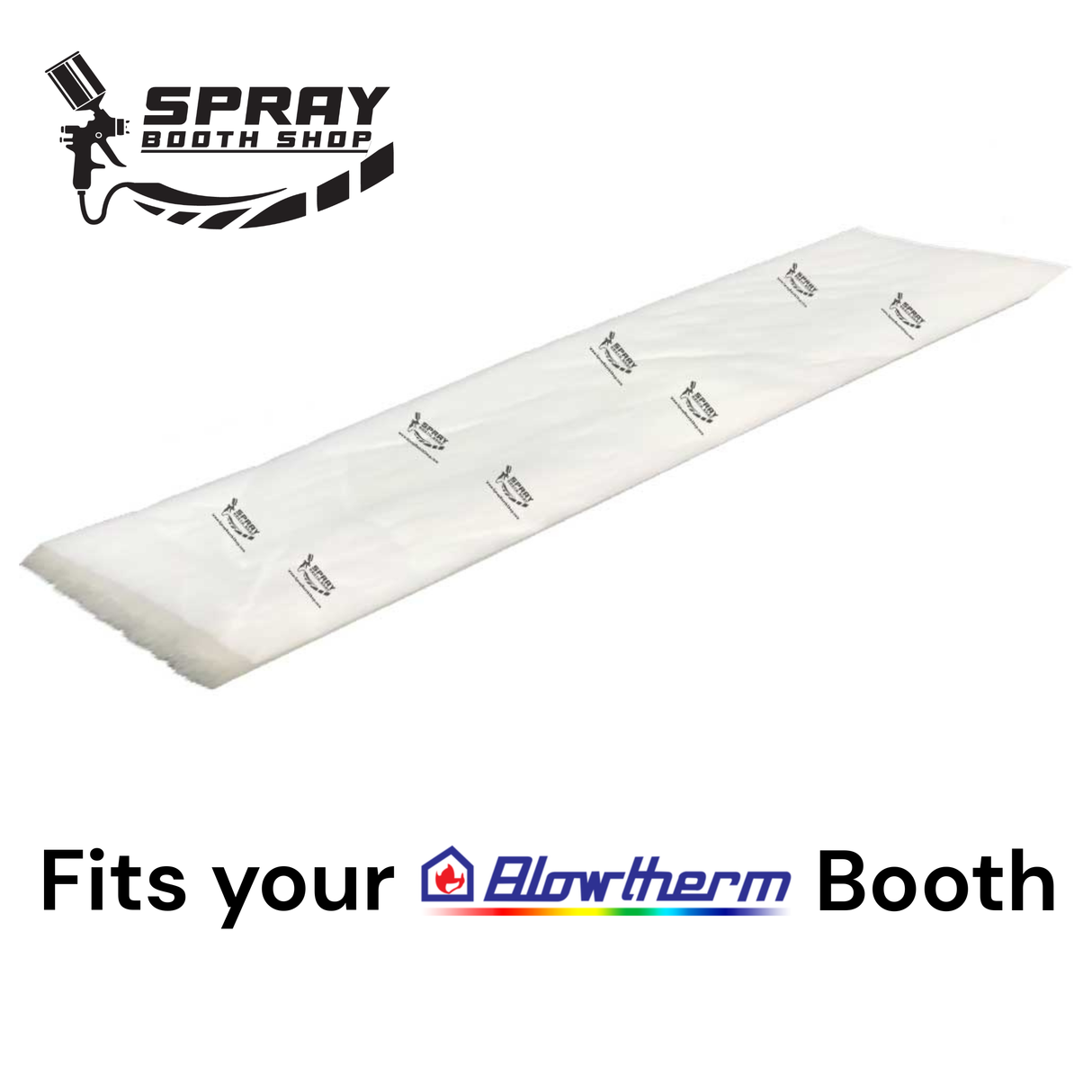

Blowtherm Ceiling Filter Blanket – F5 Tackified Polyester – Fits Extra, Ultra 2000, World Series

Purpose-built for Blowtherm downdraft spray booths, this F5-grade tackified polyester ceiling filter is cut to fit the standard ceiling banks of the Extra, Ultra 2000, Ultra 2000 Turbo, and World Series, plus Team Blowtherm-era booths that trace back to the 1998 DeVilbiss and 1999 Binks acquisitions. Blowtherm's Italian-engineered downdrafts are known for exceptional longevity, and clean F5 ceiling intake is what preserves that finish quality year after year.

Key Features

• Captures 90%+ of particles over 10 microns, keeping overspray out of your exhaust stage and off the finish.
• 600 g/m² media at 20mm thickness for high dust-holding capacity and long service life.
• Progressive, gradient construction increases fiber density toward the clean-air side and traps fine particles deeper in the media.
• Impregnated tackifier throughout bonds paint particles to the media instead of releasing them downstream.
• Heat-sealed 9-gauge support frame holds shape under load and resists sagging at peak airflow.
• Rated for 0.25 m/s face velocity, matched to booth ceiling-plenum airflow.
• Cut to standard Blowtherm ceiling-bank sizes for a drop-in fit, with custom sizes available for non-standard banks.

Best For

• Automotive collision and refinish
• OEM-quality basecoat and clearcoat finishing
• Fleet maintenance and dealership reconditioning
• Any Blowtherm, Team Blowtherm, or legacy DeVilbiss or Binks downdraft that needs F5 or EU5-grade ceiling intake filtration

Usage & Care

Replace ceiling filters every 3 to 6 months depending on production volume and paint type. Italian-engineered downdrafts like the Ultra 2000 maintain finish quality longest when ceiling filters are changed proactively before pressure differential spikes, typically quarterly for high-volume collision centers and every 6 months for lower-volume shops.
