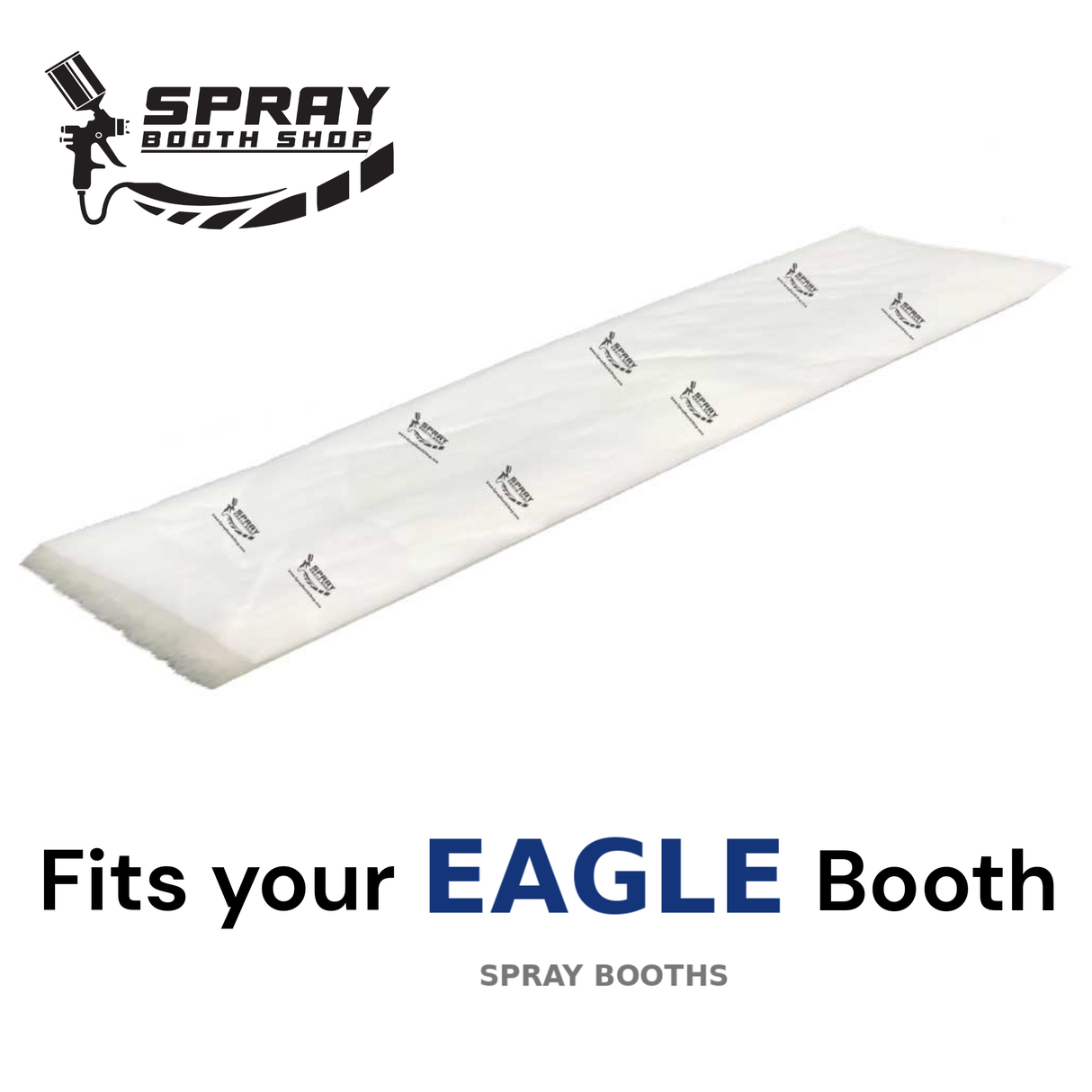

Eagle Ceiling Filter Blanket – F5 Tackified Polyester – Fits Crossflow & Downdraft Booths

Designed to fit Eagle Equipment spray booths right out of the box, this F5-grade tackified polyester ceiling filter is cut to the standard ceiling-bank sizes used across Eagle's Crossflow, Downdraft, Semi-Downdraft, Reverse Flow, and Heated configurations, plus Eagle Truck and Motorcycle booth variants. Eagle has been manufacturing US-made paint booths for over five decades, with configurations from 9 ft compact motorcycle booths up to 60 ft and larger industrial installations.

Key Features

• Captures 90%+ of particles over 10 microns, keeping overspray out of your exhaust stage and off the finish.
• 600 g/m² media at 20mm thickness for high dust-holding capacity and long service life.
• Progressive, gradient construction increases fiber density toward the clean-air side and traps fine particles deeper in the media.
• Impregnated tackifier throughout bonds paint particles to the media instead of releasing them downstream.
• Heat-sealed 9-gauge support frame holds shape under load and resists sagging at peak airflow.
• Rated for 0.25 m/s face velocity, matched to booth ceiling-plenum airflow.
• Cut to standard Eagle ceiling-bank sizes for a drop-in fit, with custom sizes available for non-standard banks.

Best For

• Automotive collision and refinish
• Truck and fleet painting
• Motorcycle and custom paint
• Industrial coating in custom Eagle booth configurations
• Any Eagle Equipment booth that needs F5 or EU5-grade ceiling intake filtration

Usage & Care

Replace ceiling filters every 3 to 6 months depending on production volume and paint type. Eagle crossflow installations running solvent-based finishes typically extend to 6 months, while high-volume downdraft and reverse-flow shops should change quarterly. Monitor manometer readings and inspect monthly for visible loading.
