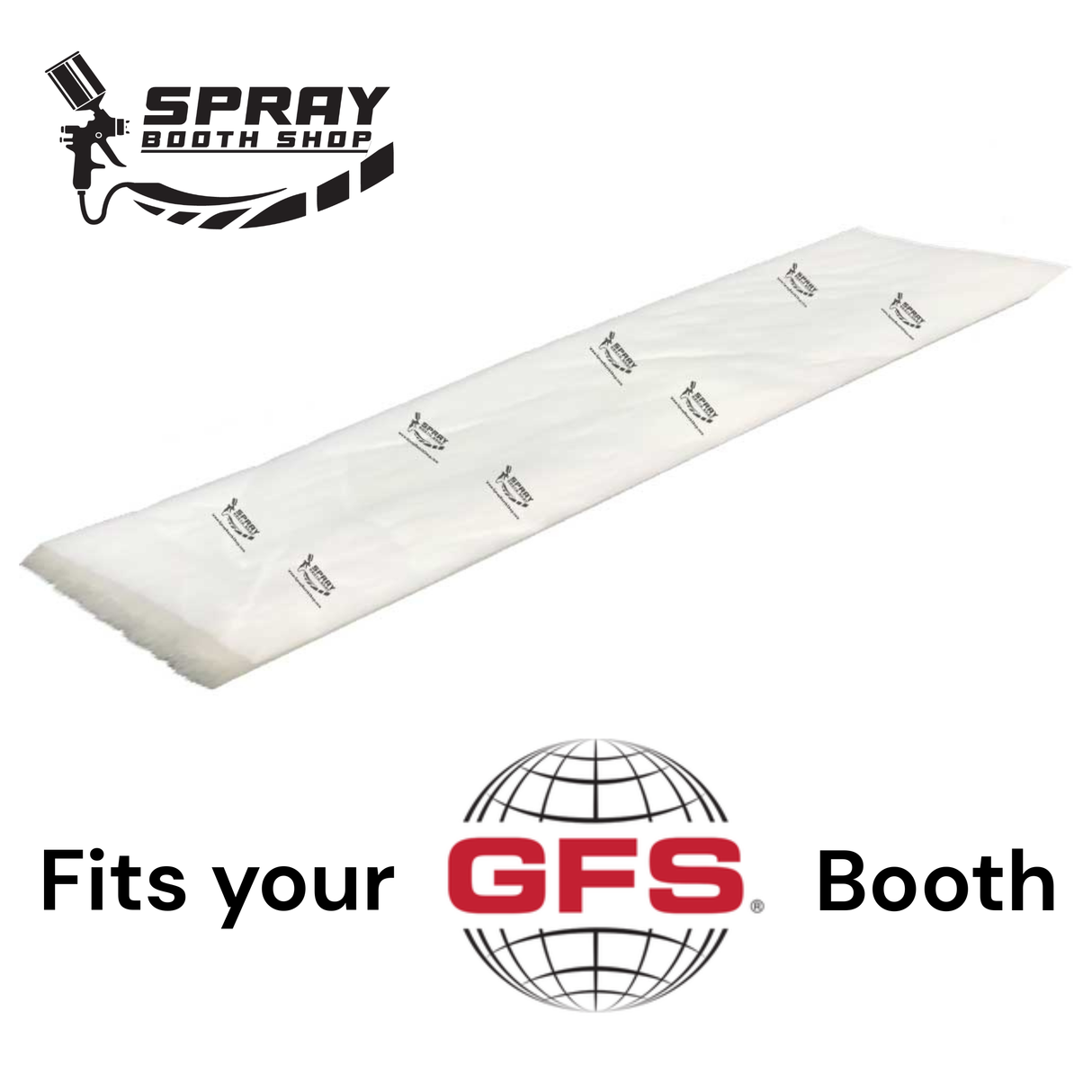

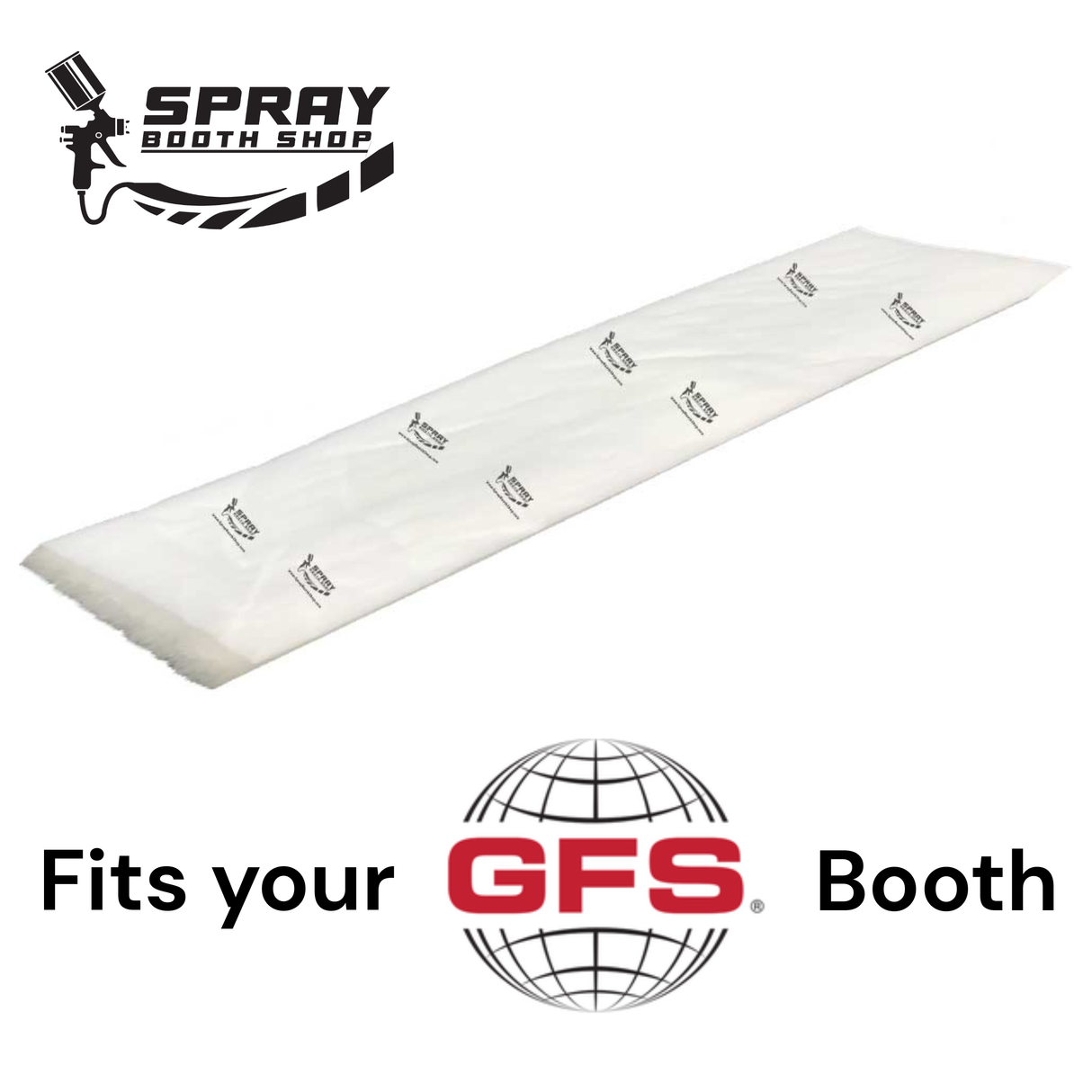

Engineered to drop into Global Finishing Solutions (GFS) ceiling plenums right out of the box, this F5-grade tackified polyester ceiling filter is cut to the standard sizes used across the Ultra XP1, XS1, XS2, XD, XL, and XR3, the Performer ES and E, AdvanceCure, REVO, and Enclosed Finishing lines. GFS operates the largest installed base of paint booths in North American collision repair, and consistent F5 intake helps keep booth airflow on spec.
Key Features
- Captures 90%+ of particles over 10 microns, keeping overspray out of your exhaust stage and off the finish.
- 600 g/m² media at 20mm thickness for high dust-holding capacity and long service life.
- Progressive, gradient construction increases fiber density toward the clean-air side and traps fine particles deeper in the media.
- Impregnated tackifier throughout bonds paint particles to the media instead of releasing them downstream.
- Heat-sealed 9-gauge support frame holds shape under load and resists sagging at peak airflow.
- Rated for 0.25 m/s face velocity, matched to booth ceiling-plenum airflow.
- Cut to standard GFS ceiling-bank sizes for a drop-in fit, with custom sizes available for non-standard banks.
Best For
- Automotive collision and refinish
- Heavy-duty truck and large equipment painting
- Aerospace finishing
- Industrial manufacturing and protective marine coating
- Any GFS booth that needs F5 or EU5-grade ceiling intake filtration
Usage & Care
Replace ceiling filters every 3 to 6 months depending on production volume and paint type. High-volume collision centers running Ultra XP1 or Ultra XD booths typically change quarterly, while Performer ES installations and lower-volume shops may extend to every 6 months. Monitor pressure differential at the booth control panel and replace promptly when loading exceeds spec.
-
Size options22x36, 22x69, 22x105, 22x141, 22x144, 30x75.5, 36x81, 51x121, 59.75x147.5, 61x120, 61x149, 64x108, 64x144, 64x149, 65.5x120, 65.5x149, 69x73, 73x141, 75.5x90, 75.5x120, 75.5x149, 81x108, 81x144
-
Compatible boothsAdvanceCure, CTOF, Performer E, Performer ES, REVO, Ultra, Ultra XD, Ultra XL, Ultra XP1, Ultra XS1, Ultra XS2
-
Booth airflowdowndraft
Every ceiling blanket we cut uses the same F5-grade tackified polyester media, so the fire-safety and compliance ratings below apply across all sizes and booth brands.
Fire Safety Ratings
- UL 900 Class 1 listed filter media
- DIN 53438-F1 fire-safety rated
- Meets NFPA 33 requirements for spray booth filtration
What These Ratings Mean
UL 900 Class 1 and DIN 53438-F1 are fire-safety classifications for filter media, and NFPA 33 is the National Fire Protection Association standard covering spray application using flammable and combustible materials. These ratings describe the filter media itself.
