The Often-Overlooked Component That Keeps Your Booth Running Right
In the world of spray booths, where precision and quality are paramount, every detail matters. One of the most commonly overlooked yet crucial components is the spray booth door seal. These small but mighty parts play a significant role in maintaining the integrity of your spray booth — containing hazardous chemicals, fumes, and overspray, preserving temperature control, and reducing energy costs.
If yours are already flattened or cracked, skip ahead and browse booth door seals and gasket rubber — we stock exact-fit profiles for Garmat, GFS and Blowtherm booths plus a universal neoprene sweep.
What Are Spray Booth Door Seals?
Spray booth door seals are specialized components designed to create an airtight closure when the booth's doors are shut. Typically made from high-quality rubber or silicone, they offer excellent elasticity and strong resistance to the harsh chemicals used in paint and coating applications.
Why Door Seals Matter
Door seals serve two essential functions in a spray booth:
- Containment: They act as highly effective barriers against the escape of toxic fumes, volatile organic compounds (VOCs), and overspray particles. By creating a closed system within the booth, door seals protect operators from hazardous exposure and prevent environmental pollution.
- Temperature control: Properly sealed doors minimize air infiltration, helping maintain consistent temperatures inside the booth. This is critical for optimal curing conditions and results in meaningful energy savings over time.
There's a third effect that gets missed: a booth that can't hold its seal can't hold its airflow. Air leaking in around a worn door is unfiltered air, and it will show up as dirt in your finish long before anyone blames the doors. If you're chasing nibs, check the seals as well as the filters — see why your paint finish has dirt nibs and troubleshooting low airflow.
Types of Spray Booth Door Seals
Brush Seals
Brush seals consist of densely packed bristles — typically nylon or polypropylene — affixed to a metal or plastic holder. The flexible bristles conform to irregular surfaces when compressed, making them effective at blocking drafts and accommodating slight variations in door shape or alignment. They hold up well in high-traffic areas and are easy to install, though they may require periodic replacement due to friction wear.
Bulb Seals

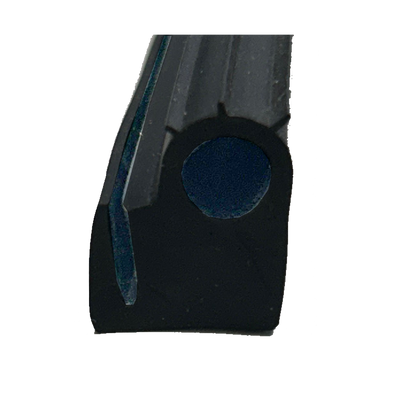

Bulb seals feature a hollow rubber or silicone bulb attached to a rigid base. When the door closes, the bulb compresses and deforms to form an airtight seal along its entire length, compensating for minor gaps or misalignments. Bulb seals provide superior sealing performance against dust, fumes, and overspray and offer excellent resistance to permanent compression deformation — though they can be slightly more involved to install than other types. Our Garmat narrow rubber gasket and Blowtherm pre-2007 gasket are both 10 ft profiles in this family.
Flange Seals
Flange seals consist of a flexible rubber strip (typically neoprene or EPDM) attached to the edge of the door or frame. When the door closes, the flange compresses against the opposing surface to create a tight seal. Known for their durability and resistance to weathering, flange seals are well-suited for booths exposed to extreme temperatures or outdoor conditions. They offer reliable sealing over time but require precise alignment during installation. See the GFS 10 ft rubber gasket.
Door Sweeps

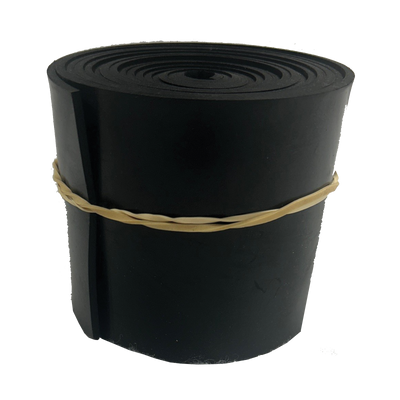

The bottom of the door is where most booths leak first, because the gap is largest and the wear is worst. A neoprene rubber door sweep strip in 4in or 8in width fits universally across booth brands and is usually the single cheapest sealing fix available.
Installation, Maintenance, and Replacement
To get the most out of your door seals, follow manufacturer guidelines for installation — paying particular attention to corners and edges where gaps are most likely to occur. Properly installed seals are the foundation of long-term performance.
For ongoing maintenance, inspect seals regularly for signs of wear or deterioration. Clean them with mild soap or rubber-safe cleaning agents to remove dirt and debris, and lubricate any moving parts to reduce friction and extend functionality.
Signs that it's time to replace your door seals include:
- Fraying bristles, flattened bulbs, or cracks in rubber flanges
- Loss of elasticity
- Noticeable gaps between doors and frames when closed
- Increased air leakage during operations
A quick field test: close the doors with the fan running and run your hand around the perimeter. Anywhere you feel air moving is unfiltered air entering your booth.
Investing in quality door seals and keeping up with maintenance not only enhances safety — it promotes sustainable, efficient operations that benefit both your team and the environment.
