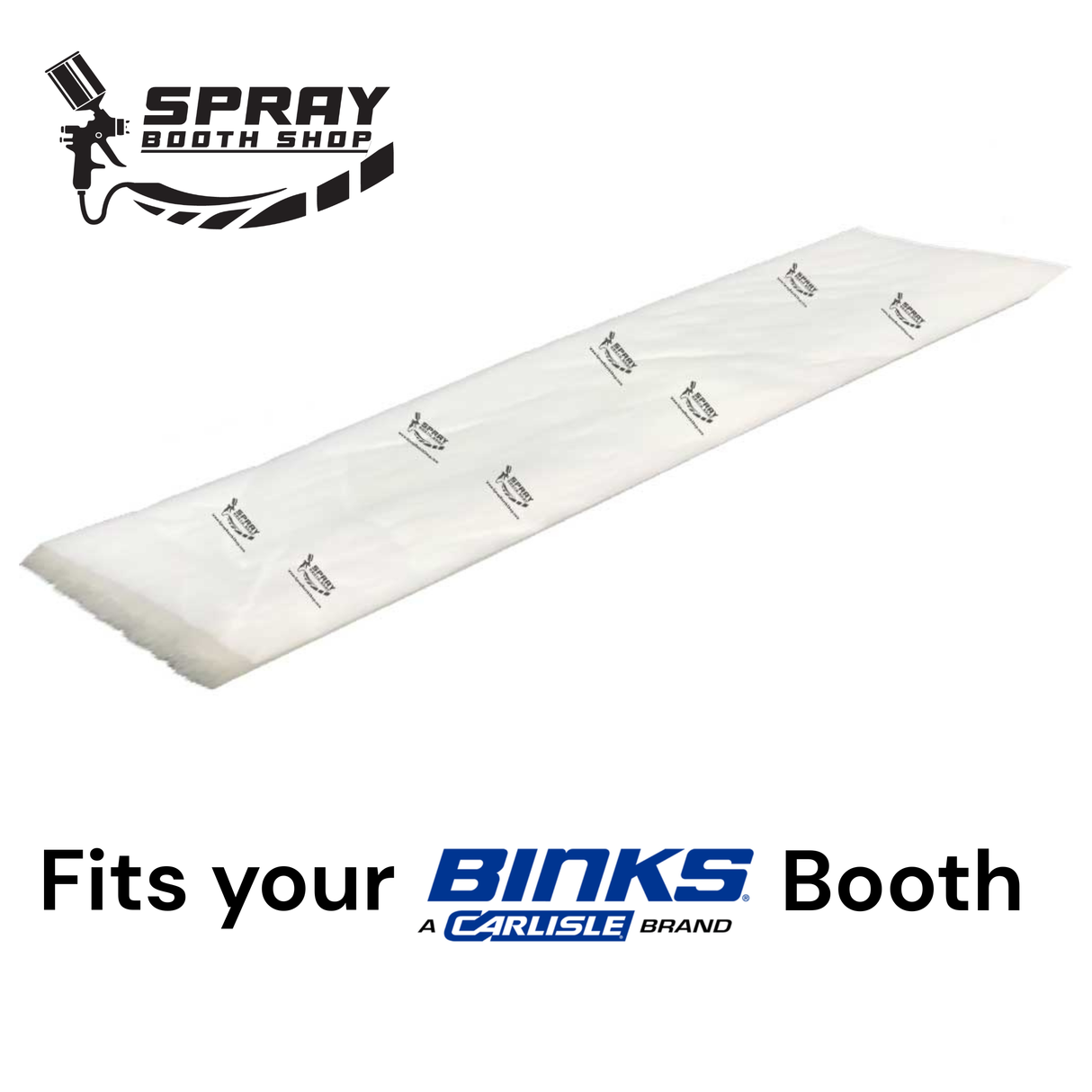

Binks Ceiling Filter Blanket – F5 Tackified Polyester – Fits Legacy Binks Spray Booths

Keep your legacy Binks spray booth running with this F5-grade tackified polyester ceiling filter, cut to fit the standard ceiling-bank sizes of Binks-manufactured crossflow and downdraft booths. The Binks Spray Booth division was acquired by Blowtherm USA in 1999 and absorbed into Team Blowtherm, and Binks under Carlisle Fluid Technologies today is a spray-gun brand, so OEM booth parts are no longer produced. We stock aftermarket blankets specifically because the OEM no longer does.

Sizing note: Measure your existing ceiling filter grid before ordering. Binks booths from different production eras (pre-ITW, ITW-era, and Team Blowtherm-era) may use slightly different ceiling-bank dimensions.

Key Features

• Captures 90%+ of particles over 10 microns, keeping overspray out of your exhaust stage and off the finish.
• 600 g/m² media at 20mm thickness for high dust-holding capacity and long service life.
• Progressive, gradient construction increases fiber density toward the clean-air side and traps fine particles deeper in the media.
• Impregnated tackifier throughout bonds paint particles to the media instead of releasing them downstream.
• Heat-sealed 9-gauge support frame holds shape under load and resists sagging at peak airflow.
• Rated for 0.25 m/s face velocity, matched to booth ceiling-plenum airflow.
• Cut to standard Binks ceiling-bank sizes for a drop-in fit, with custom sizes available for non-standard banks.

Best For

• Automotive collision and refinish on legacy Binks installations
• Industrial coating, woodworking, and furniture finishing
• OEM production-line painting
• Any operating Binks booth that needs F5 or EU5-grade ceiling intake filtration

Usage & Care

Replace ceiling filters every 3 to 6 months depending on production volume and paint type. Legacy Binks booth airflow systems are sensitive to filter loading, so change proactively at the quarterly mark for high-volume shops and inspect monthly for visible saturation. If your booth is running pressure differentials outside its original spec, replace immediately.
