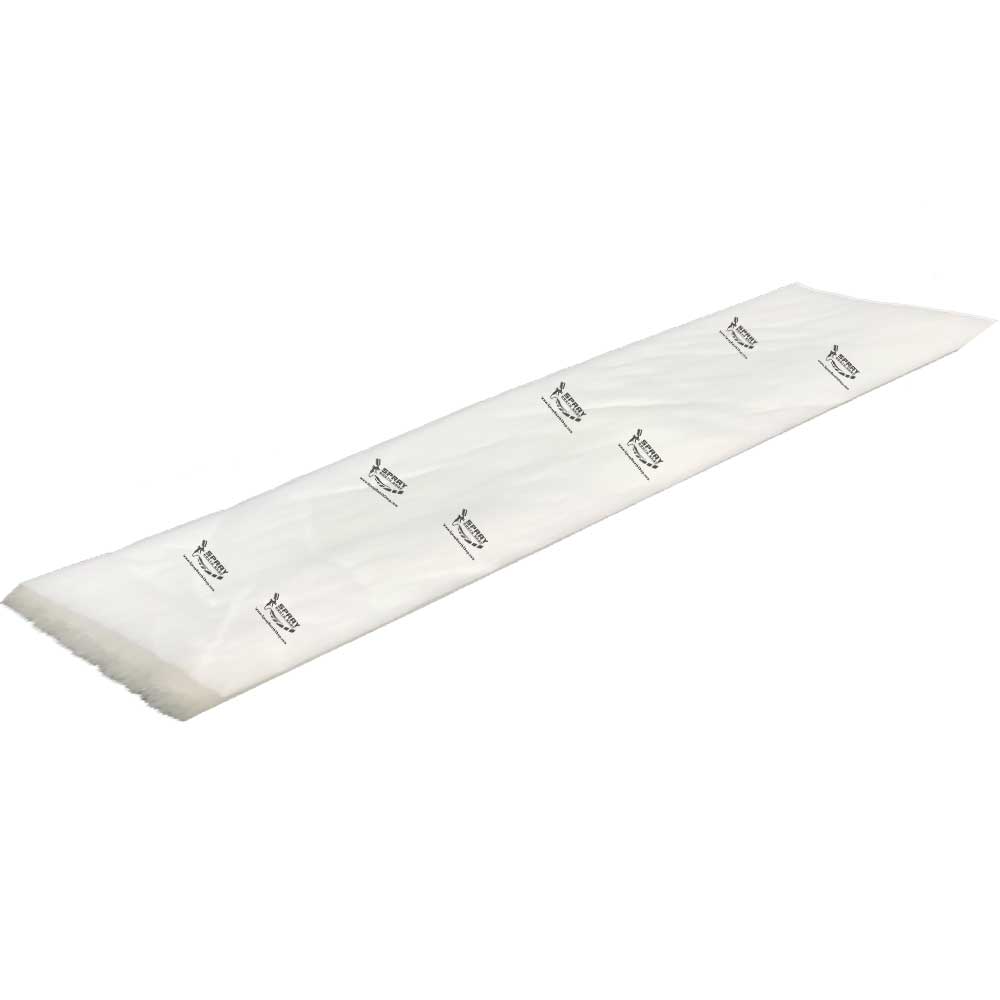

Binks Ceiling Filter Blanket | Legacy Binks Booth Replacement

Keep your legacy Binks spray booth running with this F5-grade tackified polyester ceiling filter, cut to fit the standard ceiling-bank dimensions of Binks-manufactured paint booths. The Binks Spray Booth division was acquired by Blowtherm USA in 1999 and absorbed into the Team Blowtherm product line — meaning OEM Binks booth parts are no longer produced under the Binks name. These aftermarket blankets are an exact-spec replacement that keeps your booth in service without a costly retrofit.

Legacy Booth Support

Binks (founded by Joseph Binks in 1890 as Star Brass Works, and acquired by Carlisle Companies in 2015) pioneered airless spray painting and was a major spray booth manufacturer through the late 20th century. Today, Binks under Carlisle Fluid Technologies is best known for spray guns, paint circulating pumps, and accessories — the spray booth business has not existed as a standalone Binks product line since 1999. We stock filters specifically because the OEM no longer does.

Sizing note: Measure your existing ceiling filter grid before ordering. Binks booths from different production eras (pre-ITW, ITW-era, and Team Blowtherm-era) may use slightly different ceiling-bank dimensions.

Key Features

• 90%+ filtration efficiency on particles greater than 10 microns
• 600 g/m² weight, 20mm thickness — high dust-holding capacity and long service life
• Progressive (gradient) construction — fiber density increases toward the clean-air side, trapping fine particles deeper into the media
• Impregnated tackifier throughout — paint particles bond to the media instead of releasing downstream
• UL 900 Class 1 + DIN 53438-F1 fire-safety rated — meets NFPA 33 requirements for spray booth filtration
• Heat-sealed 9-gauge support frame — holds shape under load, won't sag at peak airflow

Specifications

• Media: F5/EU5/M5-grade tackified 100% polyester
• Weight: 600 g/m²
• Thickness: 20mm (±3mm)
• Efficiency: 90%+ at particles >10 microns
• Wind velocity rating: 0.25 m/s
• Fire safety: UL 900 Class 1 / DIN 53438-F1

Compatibility

• Legacy Binks Spray Booths (pre-1999 OEM production)
• Binks Crossflow and Downdraft configurations
• Binks-branded industrial finishing booths (woodworking, furniture, OEM coating)
• Team Blowtherm-era booths derived from the Binks product line (post-1999 acquisition)
• Any Binks installation still using original ceiling-bank dimensions

Options & Sizes

• 23" × 120" — fits Binks compact downdraft and crossflow ceiling banks
• 26" × 120" — fits Binks standard-width ceiling banks
• 36" × 72" — fits Binks short-cabin automotive ceiling banks
• 36" × 127" — fits Binks full-length automotive ceiling banks
• 36" × 130" — fits extended Binks downdraft ceiling banks

Applications

• Automotive collision and refinish on legacy Binks installations
• Industrial coating, woodworking, and furniture finishing
• OEM production-line painting
• Any operating Binks-branded booth requiring F5/EU5-grade ceiling intake filtration aftermarket support

Need a non-standard size? See our Custom Cut Ceiling Filter Blanket.

Usage & Care

Replace ceiling filters every 3–6 months depending on production volume and paint type. Legacy Binks booth airflow systems are sensitive to filter loading — change proactively at the quarterly mark for high-volume shops and inspect monthly for visible saturation. If your booth is running pressure differentials outside its original spec, replace immediately.
