On a high-volume coating line, the booth does not stop. Parts move continuously, guns run for full shifts, and a filter change means the line goes down. That changes how you think about filtration entirely. In a collision shop a clogged filter is an annoyance; on a production coating line it is lost throughput measured in dollars per minute. This guide covers filter specs for continuous-duty industrial finishing: staged exhaust design, dust-holding capacity, pressure management, and the documentation that keeps you audit-ready.
Continuous duty changes the filter math
Intermittent booths get recovery time; the media sits idle between jobs. A production line loads filters relentlessly, so two numbers dominate: dust-holding capacity (how much solid the media holds before it chokes) and pressure drop over time (how fast resistance climbs as it loads). The goal is the longest stable service life at acceptable airflow, so changeouts land on scheduled maintenance windows instead of forcing an unplanned line stop.
Staged exhaust filtration: let each layer do one job
The core strategy for high-volume lines is multi-stage exhaust filtration. Instead of asking one filter to do everything, you stack progressively finer media so each stage protects the next and total capacity climbs. A typical progression:
| Stage | Media | Job |
|---|---|---|
| Pre / knock-down | Mesh or coarse panel | Catch large particles and heavy solids first |
| Primary capture | Accordion (Andreae) or fiberglass | Hold the bulk of the overspray at high efficiency |
| Final / polish | Pocket / bag filter | Protect the fan, duct, and stack from carryover |
Staging spreads the load so no single filter blinds prematurely, which is exactly what you want when downtime is expensive. For the full design logic, see multi-stage exhaust filter staging.
Stage 1: mesh knock-down
A mesh pre-filter or coarse panel takes the first hit, grabbing large droplets and debris so the primary media is not wasted on material a cheap screen can catch.
Stage 2: primary capture

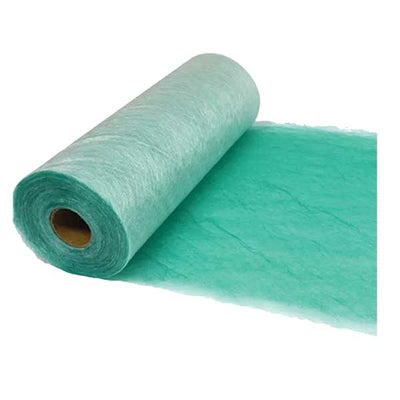

This is the workhorse. Andreae accordion media offers high dust-holding capacity and progressive loading; fiberglass rolls are a proven, economical alternative. Choose based on your overspray volume and how you want to balance media cost against change frequency. Our Andreae AF number guide helps match the accordion format to a high-airflow line.
Stage 3: final polish
A pocket or bag filter is the last line of defense, catching fine carryover to keep your fan balanced and your stack clean. On lines with strict emissions limits, this stage also supports your capture documentation.
Dust-holding capacity and pressure drop
Spec media by capacity, not just initial efficiency. A filter with a low initial pressure drop but poor holding capacity loads fast and forces frequent stops; a higher-capacity filter costs a bit more up front and runs far longer between changes. Track pressure drop on a manometer and log the loading curve so you can predict changeouts and schedule them into planned maintenance rather than reacting to a line stall.
The real cost of downtime
On a coating line, filter economics are downtime economics. If a filter change costs an hour of line time, the price difference between a budget filter and a high-capacity one is trivial next to the throughput you lose to extra changeouts. Optimize for the longest stable interval and the fewest unplanned stops. Browse the full range in paint booth exhaust filters, and watch the replacement signals in when to replace paint booth filters.
The same capacity-first logic drives filtration in other heavy-duty verticals. If you also paint large vehicles, see truck and fleet booth filters for oversized-ceiling coverage; if any line runs dry powder, powder coating booth filters follow a completely different, cartridge-based playbook.
Documentation and compliance
Industrial finishers usually operate under air permits and, where applicable, the federal NESHAP 6H area-source rule (40 CFR 63.11173(e)(2)(i)), which requires an exhaust filter technology demonstrated to capture at least 98% of paint overspray by weight under a recognized test method (for example ANSI/ASHRAE 52.2-2017 or EPA Method 319). Keep filter certificates, change logs, and pressure records on file; a documented staged system with capacity data makes an inspection straightforward. Start at our compliance hub and the NESHAP 6H and 98% capture rule explainer. Note that NFPA 33 governs the airflow and fire-safety side of booth operation, separate from the emissions rule. This is general information, not legal advice; confirm requirements with your state or local air authority.
Frequently asked questions
What is staged exhaust filtration?
It is layering progressively finer media in the exhaust: a mesh or coarse pre-filter, then a high-efficiency primary filter such as accordion or fiberglass, then a pocket or bag final stage. Each layer protects the next, spreading the load and raising total dust-holding capacity.
Which primary exhaust media is best for a high-volume line?
Both accordion (Andreae) and fiberglass work. Accordion media offers strong dust-holding capacity and progressive loading for long, stable intervals; fiberglass is economical and proven. The right choice depends on your overspray volume and how you weigh media cost against change frequency.
How do I minimize downtime from filter changes?
Spec for capacity, stage the exhaust so no single filter loads too fast, track pressure drop, and schedule changeouts into planned maintenance windows. Higher-capacity media that runs longer beats a cheap filter that forces frequent stops.
Do industrial coating lines need filter documentation?
Typically yes. If you operate under an air permit or NESHAP 6H, keep filter certificates, change logs, and pressure records so you can demonstrate the exhaust captures at least 98% of overspray by weight. This is general information, not legal advice.
Build a line that runs, not one that stops
Stage your exhaust, spec for capacity, log your pressure, and keep your certificates current. Start with paint booth exhaust filters and the multi-stage staging guide, or tell us your line's airflow and duty cycle and we will spec a staged system built for uptime.
