If your paint booth pulls exhaust through a tower or plenum, you eventually face a fork in the road: run deep pocket/bag filters or stick with flat panel and pad media. Both can hold overspray, both bolt into a frame, and both get quoted as "exhaust filters." But they behave very differently once paint starts loading them, and picking the wrong one costs you in changeouts, airflow, and money. This guide breaks down the real trade-offs so you can match the media to your tower.
What each filter actually is
The distinction comes down to shape and depth, which drives how much overspray the media can hold before it clogs.
Panel and pad media (flat)

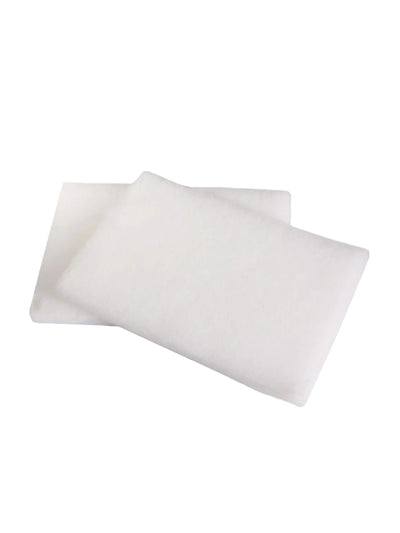

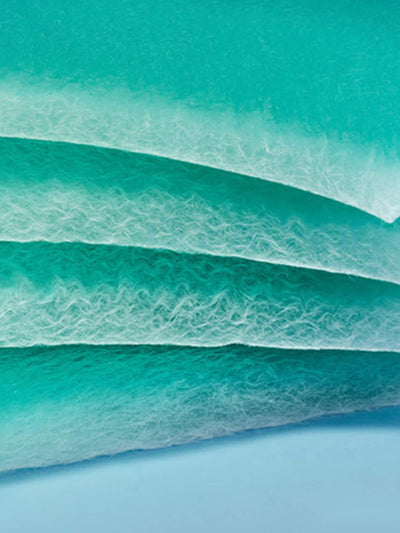

Panel filters, fiberglass pads, and polyester pads are shallow — typically 1" to 2" thick — and sit flat across the exhaust opening in a grid or frame. They are the workhorse of most single-stage exhaust walls. Fiberglass and polyester pads are inexpensive, easy to cut to size, and simple to change. The catch: because they are thin, their dust-holding capacity is limited, so they load and blind off faster in high-volume shops.
Pocket and bag media (deep)
Pocket filters (also called bag filters) use multiple deep pockets of media — often 15" to 30" deep — sewn into a rigid header that seats in a frame. All that folded surface area gives them dramatically more dust-holding capacity than a flat pad of the same face size. In an exhaust tower or multi-stage plenum, pocket/bag filters usually serve as the secondary or final stage, catching the fine overspray that slips past a primary pad and protecting the fan and stack.
Browse both media families in our pocket and bag filter collection and the broader paint booth exhaust filters collection to see the depths and ratings we stock.
Head-to-head comparison
| Factor | Flat panel / pad media | Deep pocket / bag media |
|---|---|---|
| Media depth | 1"–2" | 15"–30" |
| Dust-holding capacity | Lower — loads faster | Much higher — extended surface area |
| Typical service life | Shorter change interval | Longer runs between changes |
| Airflow / static pressure | Low initial drop, climbs quickly as it loads | Higher initial drop, climbs more gradually |
| Frame requirement | Simple flat grid/frame | Needs pocket-depth clearance behind the frame |
| Unit cost | Lowest per piece | Higher per piece |
| Best role | Primary/first-stage capture | Secondary/final-stage fine capture |
Capacity and service life: where pockets earn their keep
The headline advantage of pocket/bag media is capacity. A single 20"-deep pocket filter can pack five to ten times the effective media area of a flat pad covering the same opening. That extra area means the filter loads more slowly, so your static pressure climbs more gradually and you go longer between changeouts.
For a busy production shop, fewer changeouts means less downtime and less labor spent pulling and reloading frames. For a low-volume shop, that same capacity can mean a pocket filter simply lasts longer on the calendar. The trade-off is that pocket filters cost more per piece up front — so the math depends on your spray volume. Track your pressure with a gauge and change on the reading, not the guesswork; our guide on reading a paint booth manometer walks through how to set your change points, and when to replace paint booth filters covers the warning signs.
Frame fit: the deal-breaker most shops overlook
This is where plans go sideways. Flat pads and panels drop into a shallow grid — the media is only an inch or two thick, so the frame needs almost no depth behind it. Pocket filters are the opposite: those 15"–30" pockets need clearance inside the plenum or tower to hang without crushing against the fan housing or ductwork. If your exhaust cabinet was built for flat pads, you may not have the depth to convert to pockets without giving up capacity or reworking the frame.
Before you switch media types, measure three things: the face opening (width x height), the available depth behind the frame, and the header style your frame accepts. If you are replacing or upgrading the holders themselves, see our filter grids and frames collection for compatible hardware. When in doubt, match the header dimension of the filter to the frame first, then confirm the pocket depth fits your cabinet.
Replacement cost: unit price vs. cost per operating hour
Comparing a cheap flat pad to a pricier pocket filter and calling the pad "cheaper" is the classic mistake. What matters is cost per operating hour — the filter price divided by how long it runs before it blinds off. A high-capacity pocket that runs three times as long as a stack of pads can win on total cost even at a higher sticker price, once you factor in the labor of each changeout and the airflow penalty of a loaded flat pad.
Run the numbers for your own volume. In a slow shop, the flat pad's lower unit cost usually wins. In a high-throughput production booth, the pocket's capacity often wins. Neither is universally "better" — it is about matching capacity to how hard you run the booth.
Compliance still applies to both
Whichever media you choose for the final exhaust stage, it has to do its actual job: capturing overspray. Under the federal NESHAP 6H area-source rule (40 CFR 63.11173(e)(2)(i)), your exhaust filter technology must be demonstrated to capture at least 98% of paint overspray by weight, verified by a method such as ANSI/ASHRAE 52.2-2017 or EPA Method 319. Both pocket/bag and panel/pad media are available in configurations rated to that standard — but the rating belongs to the specific product, not to the shape. Always confirm the efficiency data before you buy, and keep the certificate on file. This is general guidance, not legal advice — confirm requirements with your state or local air authority.
How to choose for your tower
- Choose flat panel/pad media if your cabinet is shallow, your spray volume is light to moderate, and you want the lowest unit cost and simplest changeouts.
- Choose deep pocket/bag media if you run high volume, have plenum depth to spare, and want fewer changeouts and steadier airflow between them — especially as a final polishing stage behind a primary pad.
- Run a two-stage setup — a primary pad to catch the bulk of overspray, backed by a pocket/bag final stage — when you want to protect the fan and maximize the life of the more expensive media. For how to layer those stages correctly, see our guide to multi-stage exhaust filter staging.
Want a deeper media-by-media breakdown? Our companion piece comparing Andreae vs. fiberglass vs. pocket exhaust filters lines up the three most common options side by side. If you have already settled on flat pads and just need to pick the media, compare polyester vs. fiberglass exhaust media. You can also stock up directly from the exhaust filter bags collection.
Frequently asked questions
Are pocket/bag filters better than panel filters?
Not universally. Pocket/bag filters hold far more overspray and run longer between changes, which suits high-volume shops. Flat panel and pad media cost less per piece and change out faster, which suits lighter-duty or shallow-cabinet booths. Match the media to your spray volume and the depth available in your tower.
Can I put pocket filters in a booth built for flat pads?
Only if there is enough depth behind the frame for the pockets to hang without crushing against the fan or ductwork. Measure the available plenum depth first. If the cabinet is shallow, you may need to stay with flat media or rework the frame.
Do pocket filters increase static pressure?
They typically start at a slightly higher initial pressure drop than a fresh flat pad, but that drop climbs more gradually because of their large dust-holding capacity. Over a full service cycle, a properly sized pocket filter often keeps airflow steadier than a thin pad that blinds off quickly.
Which is cheaper over time?
It depends on your volume. Compare cost per operating hour — filter price divided by how long it runs — not unit price. Pockets often win in high-throughput booths; flat pads often win in low-volume shops.
Do both meet the NESHAP 98% rule?
Both media types are available in configurations demonstrated to capture at least 98% of overspray by weight, but the rating belongs to the specific product. Confirm the efficiency data before buying and keep the certificate on file.
