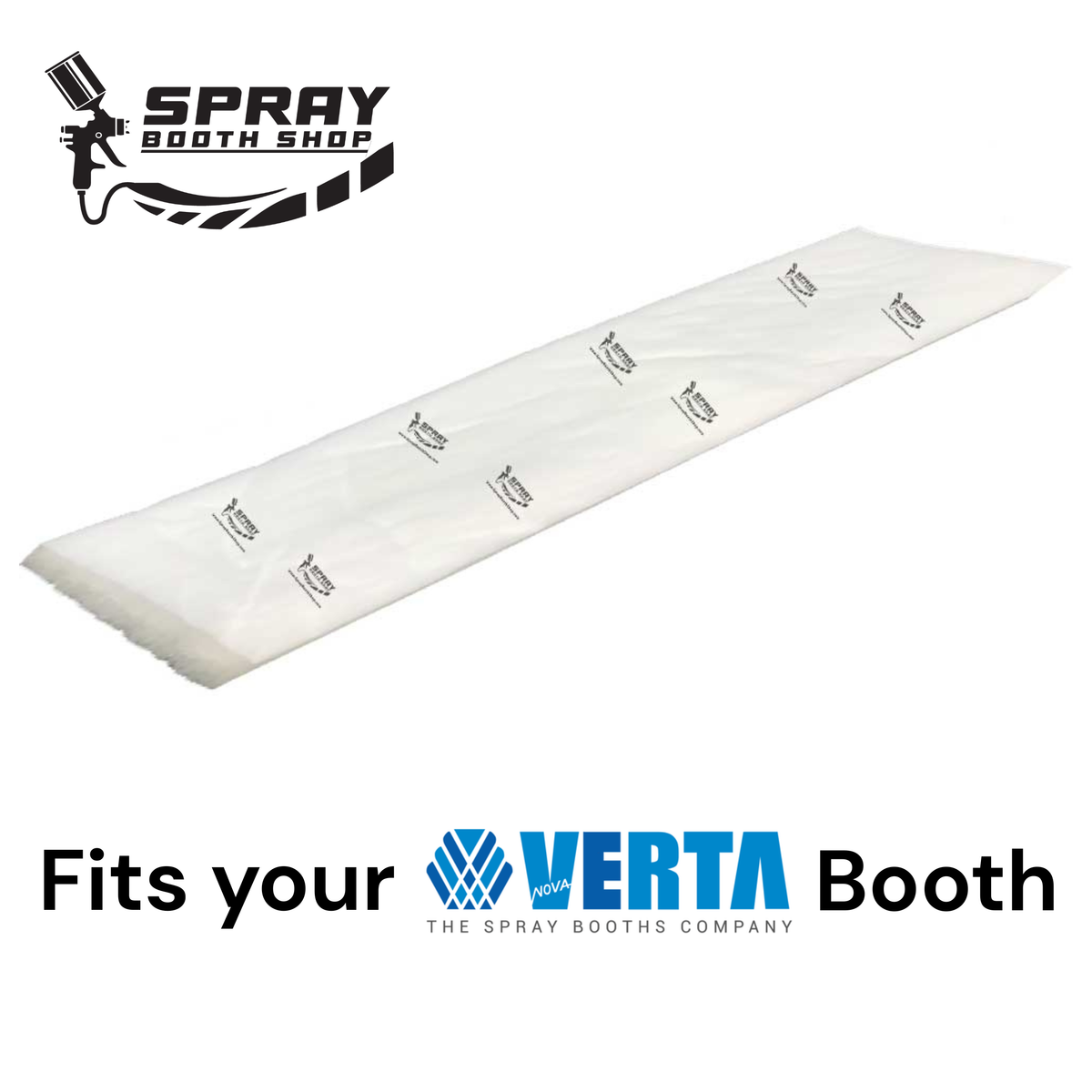

Nova Verta Ceiling Filter Blanket | Fits Prestige, Raptor Series

Engineered specifically for Nova Verta downdraft spray booths, this F5-grade tackified polyester ceiling filter delivers consistent overspray capture and balanced downflow airflow. Nova Verta International — based in Arezzo, Italy and founded in 1968 — pioneered downdraft technology over 50+ years of continuous production, and clean F5 ceiling intake is critical to maintaining the precise airflow envelope these booths are engineered to.

Key Features

• 90%+ filtration efficiency on particles greater than 10 microns
• 600 g/m² weight, 20mm thickness — high dust-holding capacity and long service life
• Progressive (gradient) construction — fiber density increases toward the clean-air side, trapping fine particles deeper into the media
• Impregnated tackifier throughout — paint particles bond to the media instead of releasing downstream
• UL 900 Class 1 + DIN 53438-F1 fire-safety rated — meets NFPA 33 requirements and supports ETL-listed Nova Verta booth compliance
• Heat-sealed 9-gauge support frame — holds shape under load, won't sag at peak airflow

Specifications

• Media: F5/EU5/M5-grade tackified 100% polyester
• Weight: 600 g/m²
• Thickness: 20mm (±3mm)
• Efficiency: 90%+ at particles >10 microns
• Wind velocity rating: 0.25 m/s
• Fire safety: UL 900 Class 1 / DIN 53438-F1

Compatibility

• Prestige Series — premium downdraft (50% more measured light output, ESS energy-saving)
• Raptor Direct Fire Series — direct-fired downdraft with three operating modes (Spray, Flash/Cure, Bake)
• Truck Paint Booth — 12 to 80 ft length configurations
• Vortex System and Wind System-equipped downdrafts
• Custom downdraft configurations from 18,000 m³/h to 40,000 m³/h airflow
• Semi-downdraft and basement-mounted variants

Options & Sizes

• 24" × 96" — standard Prestige and Raptor ceiling bank
• 24" × 128" — Prestige and Raptor extended ceiling bank
• 24" × 144" — full-length Prestige ceiling bank
• 24" × 160" — extended Truck Paint Booth ceiling bank
• 26" × 128" — wide-channel Prestige and Raptor configurations

Applications

• Automotive collision and refinish
• Heavy-duty truck and large equipment painting (Nova Verta Truck Paint Booth)
• Concours-quality and high-end refinishing
• Industrial and aerospace component finishing
• Any Nova Verta downdraft requiring F5/EU5-grade ceiling intake filtration

Need a non-standard size? See our Custom Cut Ceiling Filter Blanket.

Usage & Care

Replace ceiling filters every 3–6 months depending on production volume and paint type. Nova Verta's VFD-modulated airflow systems are sensitive to ceiling-filter loading — change filters proactively at the quarterly mark for high-throughput shops to maintain balanced cabin pressure and prevent turbulence in waterborne cycles.
