RTi BRAD-BD1 Breathing Air System – Grade D, CO Monitor, 1-2 Painters

Supplied breathing air for one or two painters, with a CO monitor that alarms at 10 ppm.

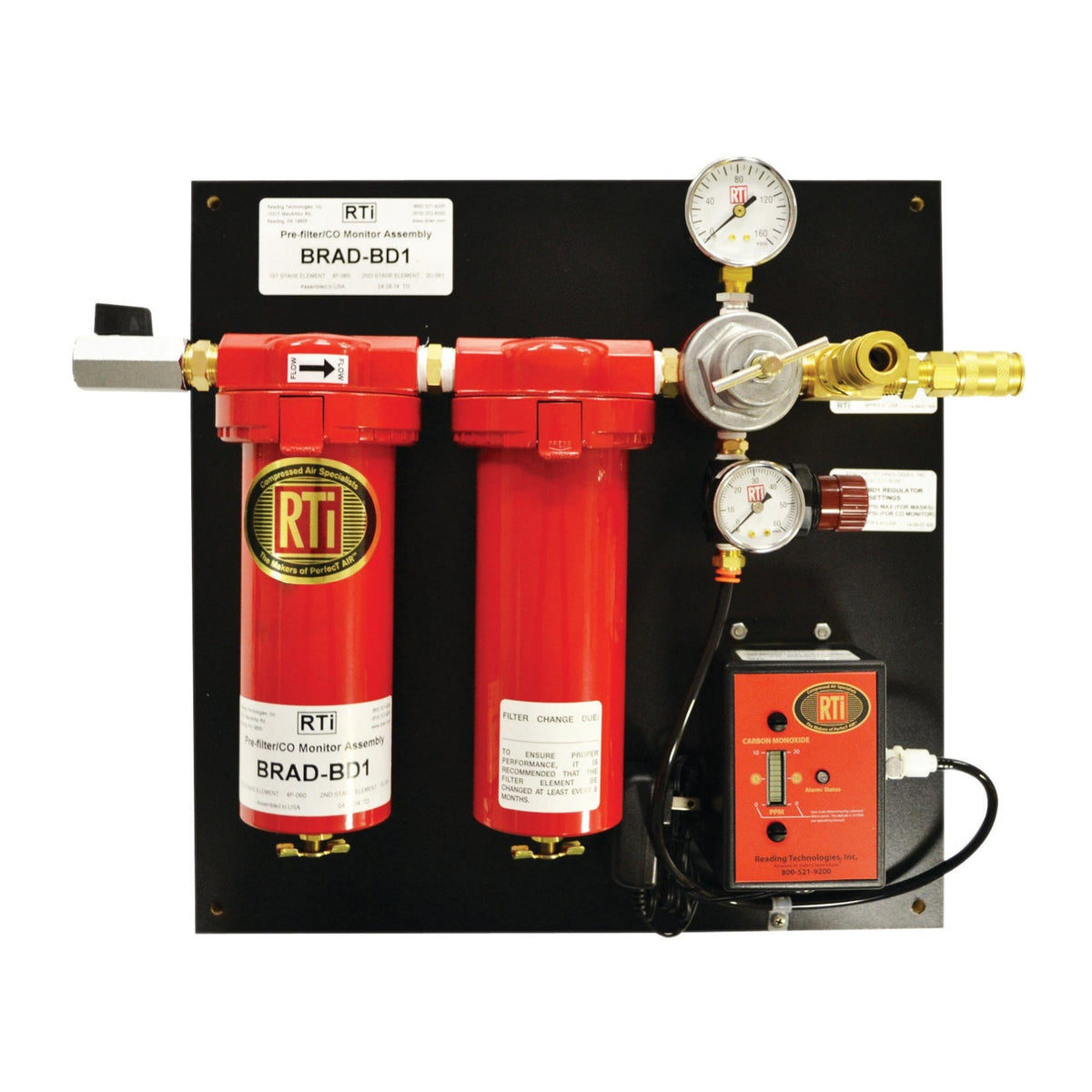

The BRAD-BD1 is an ultra-lightweight breathing air filtration system for 1-2 operators that monitors Grade "D" breathable air. A deep-bed activated carbon pre-filter removes hydrocarbons, a 0.01 micron final filter removes fine particulate and oil, and the BRAD-CM3 carbon monoxide monitor alarms at 10 ppm. It comes mounted on a ¾" board for easy installation. Pair it with an RTi operator kit (mask, non-gassing hose and flow control valve), sold separately.

Key Features

• Monitors Grade "D" breathable air.
• Ultra-lightweight design, 1-2 operators.
• Deep-bed activated carbon pre-filter for hydrocarbon removal to 0.003 ppm.
• 0.01 micron final filter for fine particulate and oil removal at 99.9998% efficiency.
• Dual ½" outlets with ¼" high flow quick disconnects provided.
• Rated for up to 60 SCFM.
• Heavy duty, high flow regulator assembled with FDA lubricant.
• 0-60 PSIG mini-regulator controls air pressure to the monitor.
• Low air sample rate through the monitor.
• Supplied mounted on a ¾" board for easy installation.

Specifications

• Flow: up to 60 SCFM
• Electrical: 110 VAC
• Outlets: dual ½" with ¼" high flow quick disconnects
• Regulator: ½" with 0-160 PSI gauge

What's Included

• Pre-filter combo
• BRAD-CM3 CO monitor
• ½" regulator with 0-160 PSI gauge
• MR-1 mini regulator
• ¾" mounting board

Replacement Elements

• 1st stage: 4P-060 — change every 3 months (RTi breathing-air schedule)
• 2nd stage: 3C-061 — change every 6 months
• 1-year element kit: BRAD-01C-MK

Applications

• Automotive refinish painters using supplied-air respirators
• Body shops spraying isocyanate-containing coatings (use with a supplied-air respirator)

Usage & Care

BRAD-CM3 CO monitor: preset at 10 ppm CO alarm, bar graph display, calibration magnet, 115 V plug connection, low pressure alarm (can be bypassed), and a 10-second RF signal delay to eliminate false alarms. Calibrate as required per the manual.

FAQ

Which elements does it use, and how often should I change them?
The 1st stage uses the 4P-060 activated carbon element, changed every 3 months. The 2nd stage uses the 3C-061 0.01 micron element, changed every 6 months. The BRAD-01C-MK 1-year kit contains (4) 4P-060 and (2) 3C-061.

How many painters and how much air does it support?
It is designed for 1-2 operators and rated for up to 60 SCFM, with dual ½" outlets fitted with ¼" high flow quick disconnects.

What does the CO monitor do?
The BRAD-CM3 monitor samples the supplied air for carbon monoxide and alarms at a preset 10 ppm. It has a bar graph display, a low pressure alarm (can be bypassed), and radio frequency cancellation: if it senses an RF signal, it will not alarm unless the signal lasts 10 seconds or longer.

Are masks and hoses included?
No. Pair it with an RTi operator kit (mask, non-gassing hose and flow control valve), sold separately.

Documents & Downloads

Technical literature published by RTi (Reading Technologies, Inc.):

• BRAD-BD1 spec sheet (PDF)
• BRAD breathing air series overview (PDF)
• BRAD quick view (PDF)
• Grade D breathing air / NIOSH sheet (PDF)
• BRAD-BD1 filter maintenance log (PDF)

Warranty

RTi stands behind its products and offers a warranty for up to 1 year after date of purchase.
