RTi BRAD-PERF Breathing & Paint Air System with CO Monitor – BRAD-PERF-25C / 50C

One system for both: -40°F paint air to the gun and Grade D breathing air to the painter.

BRAD-PERF combines RTi's Perfect Air® regenerative desiccant dryer with a breathing-air pre-filter and an inline carbon monoxide monitor. It delivers clean, dry paint air and is designed to supply Grade D breathing air. Choose the BRAD-PERF-25C for single-gun spraying or the BRAD-PERF-50C for two-gun booths. Operator kits are sold separately.

Key Features

• Consistent less than -40°F dew point to the gun.
• Clean, dry air for paint finishes.
• Deep-bed activated carbon stage in the breathing-air pre-filter.
• Engineered for use with all paint spray guns (not included), especially HVLP guns.
• Designed to supply Grade D breathing air.
• Regenerative desiccant beads require little maintenance.
• CO monitor sits directly inline with the air flow.
• Self-calibrating monitor with audible alarm; displays actual CO levels and alarms at 10 ppm.
• Power pack with battery back-up supplied with the monitor.

Specifications

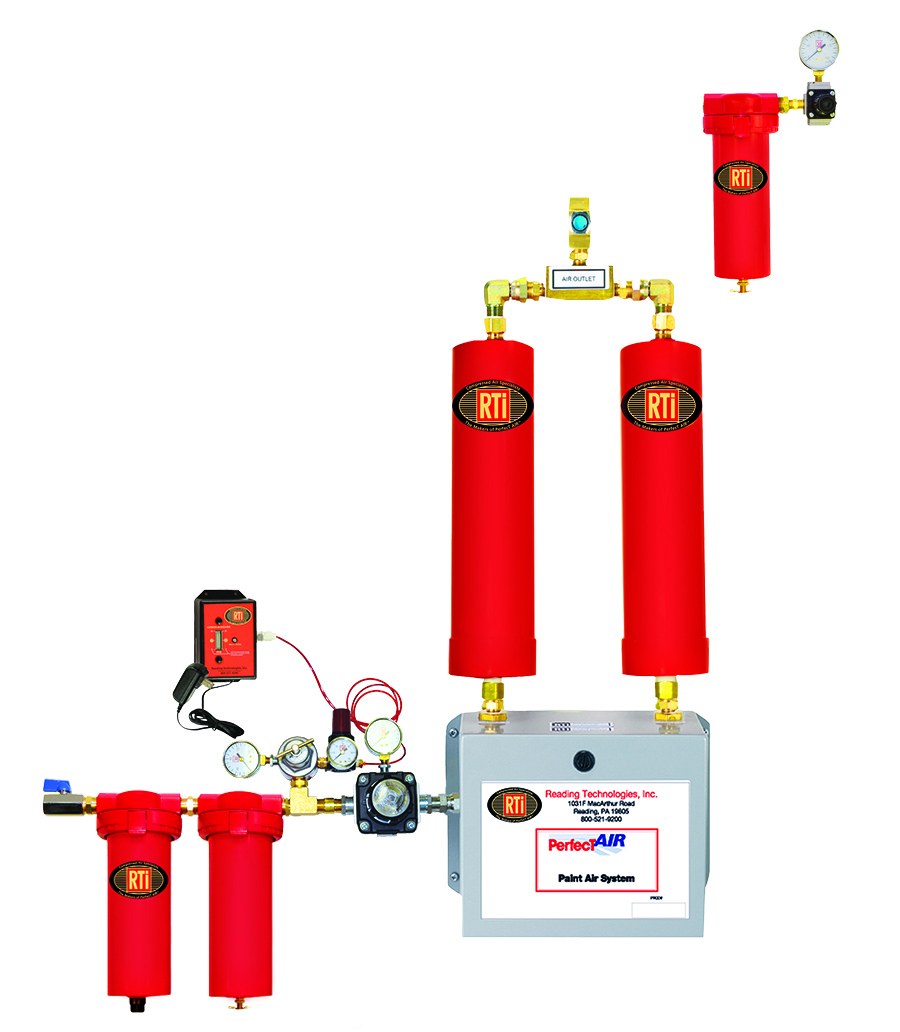

• BRAD-PERF-25C: ARAD-25 dryer, up to 25 SCFM at 100 PSI (single gun)

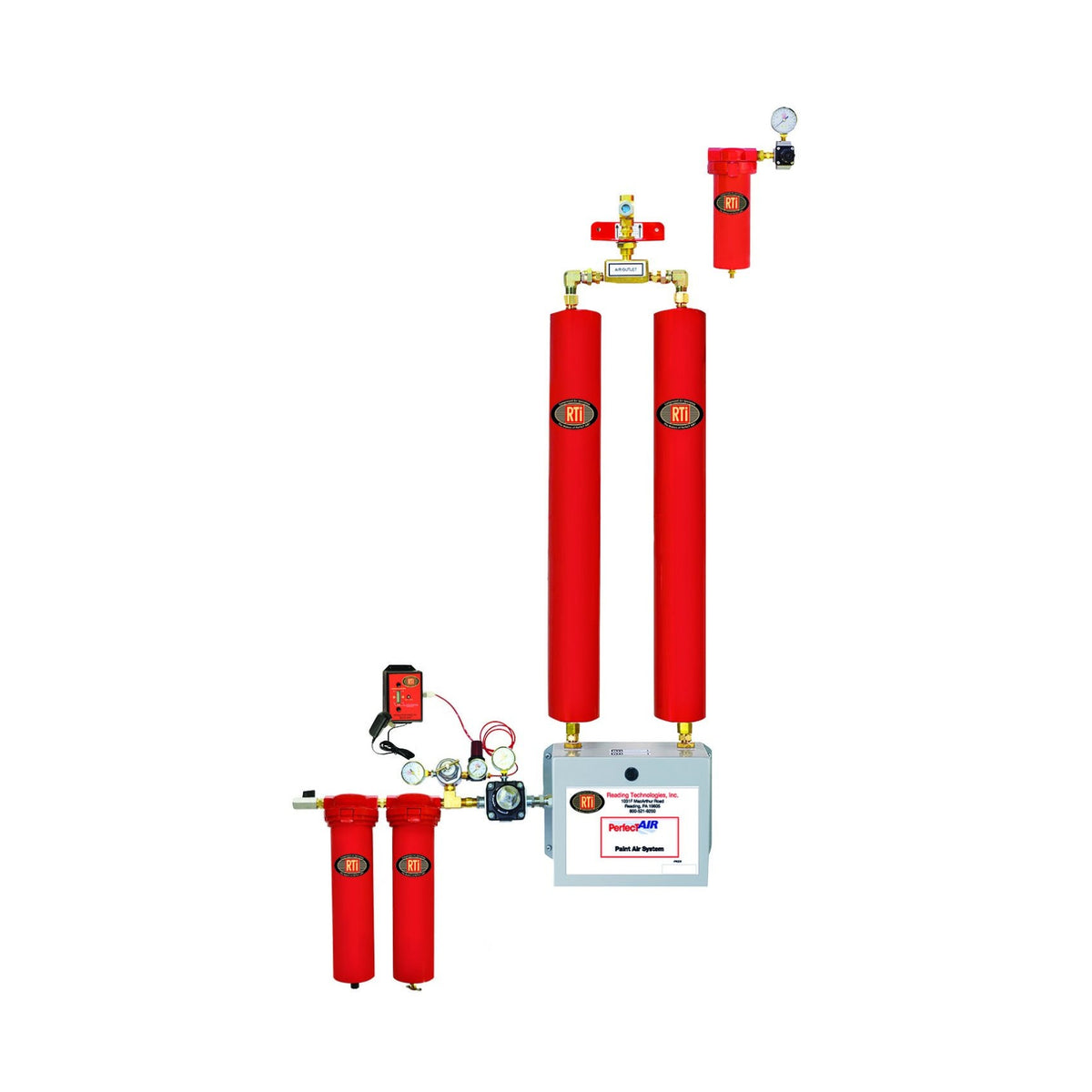

• BRAD-PERF-50C: ARAD-50 dryer, up to 50 SCFM at 100 PSI (two guns)
• Dew point: -40°F
• Breathing-air pre-filter (BRAD-PC2C): 1 micron 1st stage, 0.01 micron 2nd stage at 99.9998% efficiency, auto drain on 1st stage, ½" ball valve inlet
• After filter: 0.01 micron
• Dryer: 110 VAC, under 0.1 A, NEMA 4 enclosure, aluminum towers

What's Included

• BRAD-PC2C pre-filter with CO monitor
• ARAD-25 or ARAD-50 regenerative desiccant dryer
• PERF-25-AF or PERF-50-AF after filter with regulator and gauge

Replacement Elements

• Pre-filter: DE362C (1st stage) and 3C-151 (2nd stage) — change every 6 months; 1-year kit BRAD-02C-MK
• After filter: 3C-060

Applications

• Automotive refinish booths that need paint air and supplied breathing air from one system

FAQ

Which elements does it use, and how often should I change them?
The breathing-air pre-filter uses the DE362C (1st stage) and 3C-151 (2nd stage); change both every 6 months. The BRAD-02C-MK 1-year kit contains (2) DE362C and (2) 3C-151. The after filter uses the 3C-060.

How many guns does each version support?
The BRAD-PERF-25C is for single-gun spraying (ARAD-25 dryer, up to 25 SCFM at 100 PSI). The BRAD-PERF-50C is for two-gun booths (ARAD-50 dryer, up to 50 SCFM at 100 PSI).

What does the CO monitor do?
It is self-calibrating, displays actual CO levels and sounds an audible alarm at 10 ppm of CO. A power pack with battery back-up is supplied with the monitor.

Are masks and hoses included?
No. Operator kits (mask, non-gassing hose and flow control valve) are sold separately, and spray guns are not included.

Documents & Downloads

Technical literature published by RTi (Reading Technologies, Inc.):

• BRAD-PERF spec sheet (PDF)
• BRAD breathing air series overview (PDF)
• Grade D breathing air / NIOSH sheet (PDF)

Warranty

RTi stands behind its products and offers a warranty for up to 1 year after date of purchase.
