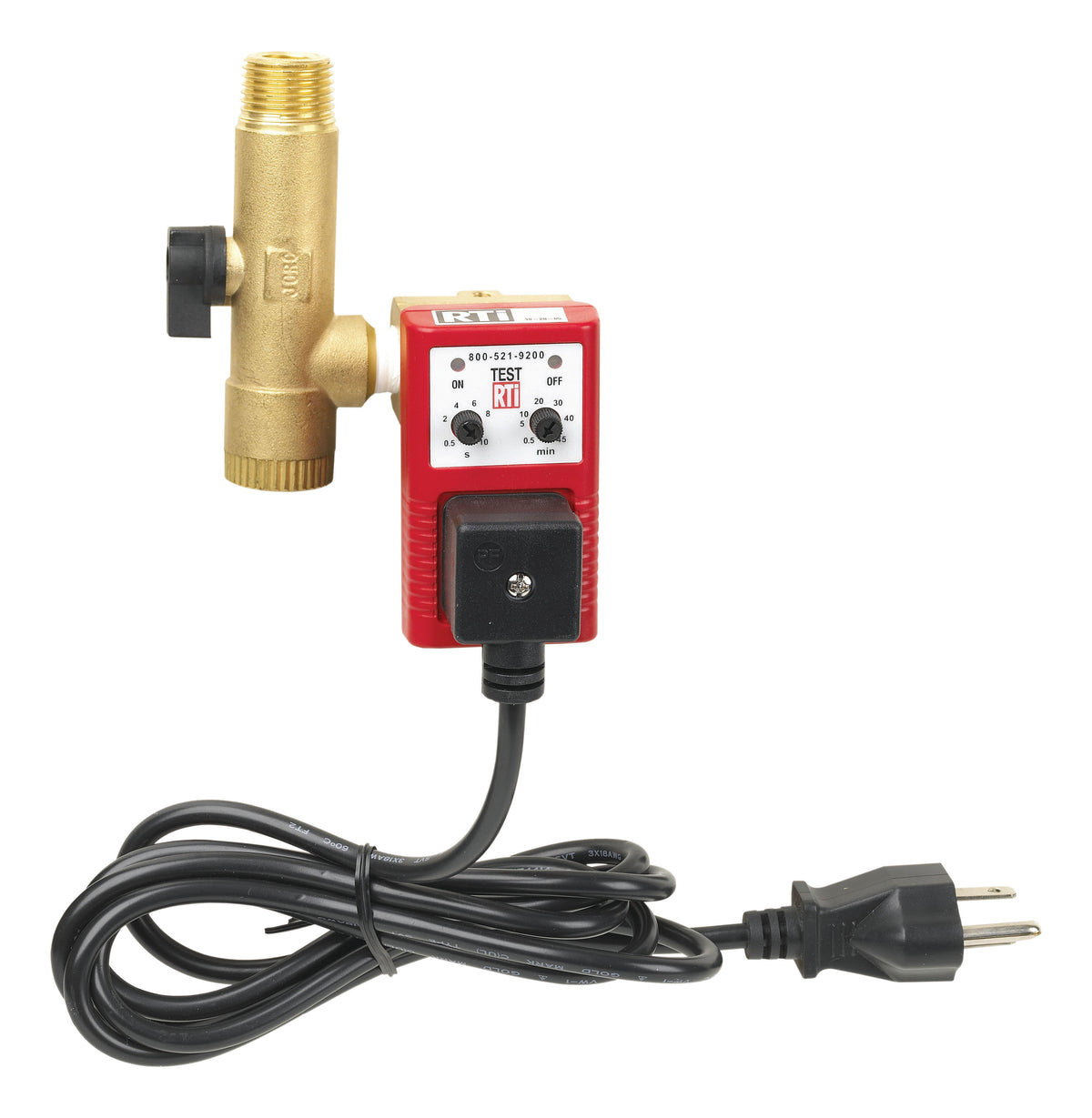

RTi ED-2-4 Electronic Timer Tank Drain – Automatic Compressor Condensate Drain

Never forget to drain the tank again — and never send a slug of water down your air lines.

One of the most critical items in any air system is often overlooked: a reliable drain on the main reservoir tank. The ED-2-4 automatically drains your tank as often as needed to provide water-free air downstream. Use it on any air reservoir tank, air/water separator, air filter, air dryer or drip leg wherever condensed water removal is necessary.

Key Features

• Adjustable drain interval: 0.5 to 45 minutes.
• Adjustable drain span: 0.5 to 10 seconds.
• On/off indicator lights.
• Ball valve strainer protects the valve from heavy contaminants.
• Stainless steel strainer element — easy to remove and clean.
• Mounts ¼" male or ½" NPT female drain lines/parts in any position.
• Test button allows manual activation.

Specifications

• Max. pressure / temperature: 230 PSI / 120°F
• Inlet: ¼" female or ½" male NPT
• Outlet: ¼" NPT (on valve)
• Power: 115V, 60 Hz, single phase — supplied with 6' power cord
• NEMA 4 rating on valve and timer
• ¼" NPT brass valve body with .157" orifice
• Product dimensions (H × W × D): 5" × 4" × 3.5"

Applications

• Compressor receiver tanks
• Drip legs and air/water separators
• Filters and dryers needing automatic condensate removal

Documents & Downloads

Technical literature published by RTi (Reading Technologies, Inc.):

• ED-2-4 electronic drain spec sheet (PDF)

Warranty

RTi stands behind its products and offers a warranty for up to 1 year after date of purchase.
