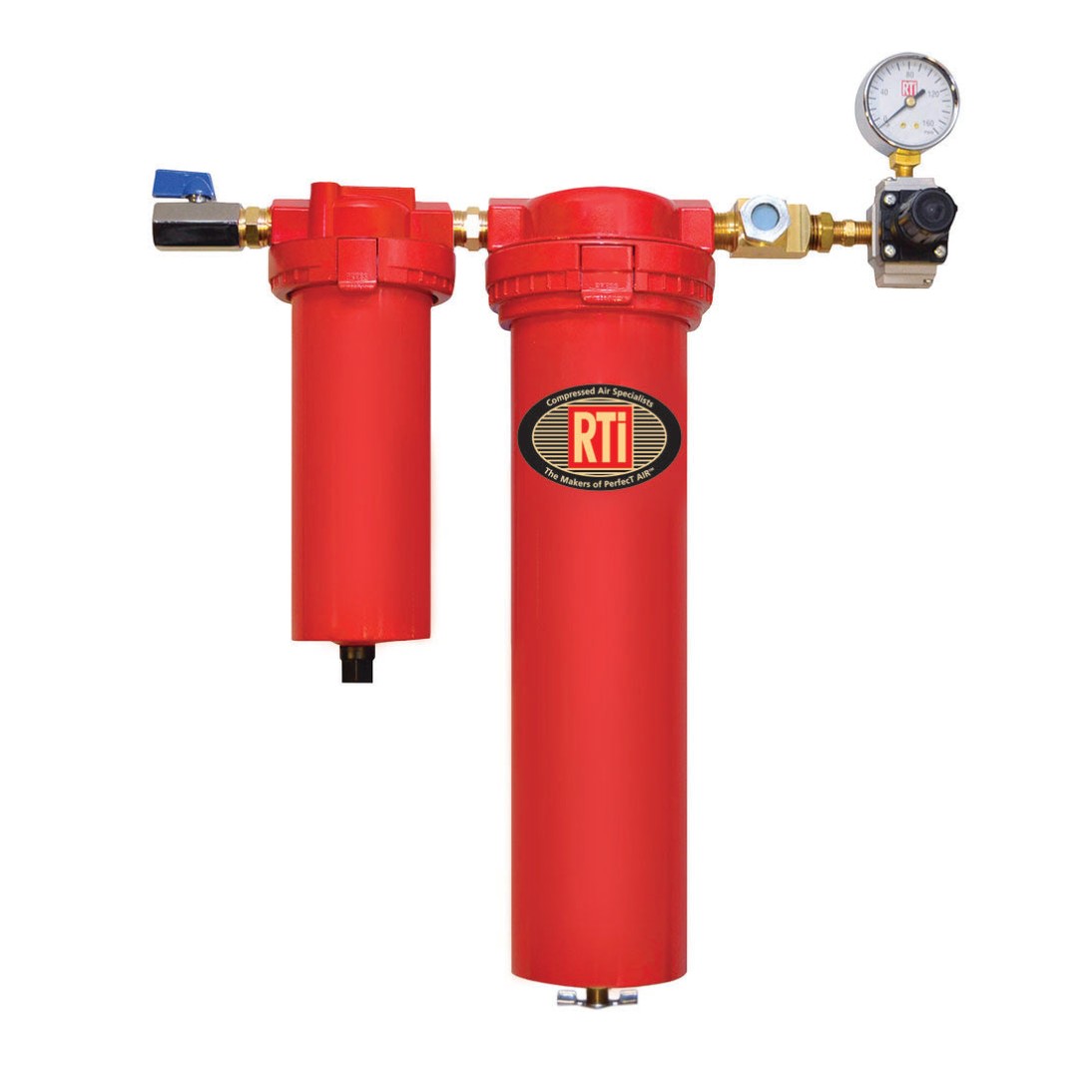

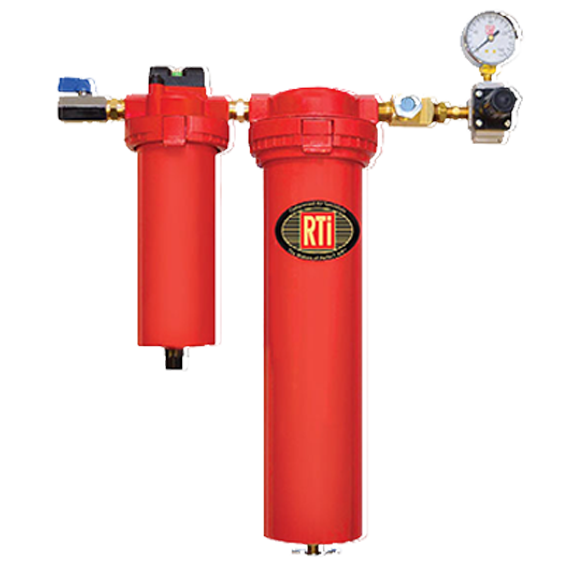

RTi Eliminator® II EH4000 Two-Stage Desiccant Paint Air Dryer – 25 SCFM

Dry, oil-free air to -40°F at the booth — so oil and water never end up as fisheyes in your finish.

The Eliminator® II EH4000 is a two-stage point-of-use desiccant dryer for paint booths and prep stations. The first stage is an activated carbon element in an Inverse-Flow® housing that pulls out water, dirt and oil vapor; the second is a contained desiccant cartridge with a built-in 1 micron final filter, so there is no desiccant dust migration. A true air-stream moisture indicator shows when the desiccant needs changing. The three models differ only in outlet regulator size — pick the one your paint manufacturer specifies.

Key Features

• Provides continuous dry, oil-free air to -40°F dew point.
• 2 in 1: activated carbon pre-filter for superior oil vapor removal and built-in final filter with contained desiccant cartridge.
• Inverse-Flow® Technology with deep 1st-stage filter.
• Tool-less spin-on/spin-off elements and quick disconnect clamp ring — no tools required for service.
• Automatic drain on the 1st stage, with manual override.
• True air-stream moisture indicator.
• High flow relieving regulator with chrome case, glass lens gauge.
• ½" shut-off valve on inlet.
• Non-corrosive aluminum bowls. Low pressure drop design.

Specifications

• Max. flow: 25 SCFM to the gun
• Inlet: ½" NPT
• Outlet regulator: ¼" (EH4000), ⅜" (EH4000-3R) or ½" (EH4000-4R)
• Dew point: -40°F
• Filtration: 1 micron final; activated carbon oil absorption to 0.003 ppm
• Differential pressure: under 5.0 PSID at rated flow
• Max. pressure 150 PSIG · Max. operating temperature 125°F (100°F recommended)
• Size: 19" H × 15" W × 5" D · Weight: 12 lb

What's Included

• Two-stage dryer with regulator and gauge, ½" inlet ball valve, drain hose kit and mounting brackets

Replacement Elements

• 1st stage: 4P-060 activated carbon element — change at least every 6 months, or when the green indicator turns red
• 2nd stage: DE401 desiccant element — change when the indicator turns from light blue to purple-pink, or every 3 months (DE406 = 6-pack)

Applications

• Paint booths and prep stations
• Lacquer spraying
• Any single-gun spraying operation

Usage & Care

The Eliminator® II is designed to operate one paint gun only. Install it at (but not inside) the paint booth, as close to the point of use and as far from the compressor as possible, with air flowing in the direction of the arrows.

Documents & Downloads

Technical literature published by RTi (Reading Technologies, Inc.):

• Eliminator® II series spec sheet (PDF)
• EH4000 spec sheet (PDF)
• EH4000-3R spec sheet (PDF)
• EH4000-4R spec sheet (PDF)
• Eliminator® II good / better / best (PDF)
• Eliminator® II service sheet (PDF)
• EH4000 filter & dryer maintenance log (PDF)
• EH4000 parts breakdown (PDF)
• EH4000-3R parts breakdown (PDF)
• EH4000-4R parts breakdown (PDF)

Warranty

RTi stands behind its products and offers a warranty for up to 1 year after date of purchase.
