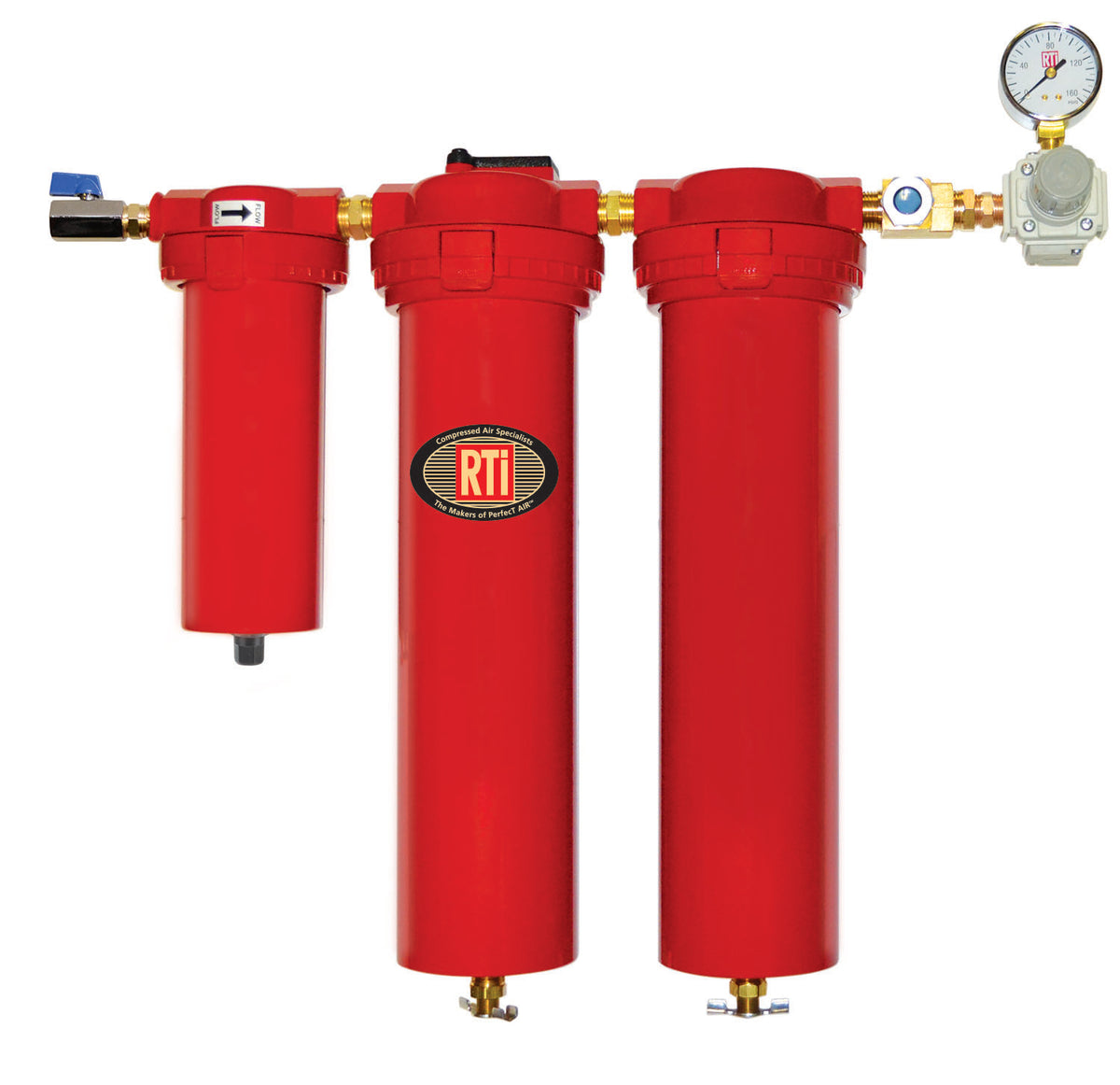

RTi Eliminator® II EH7000 Three-Stage Desiccant Paint Air Dryer – Heavy Duty

For shops with dirty air: three stages, 0.01 micron, -40°F dew point — designed to eliminate fisheyes from compressed air.

Perfect for body shops with high levels of contamination, the EH7000 adds the largest 0.01 micron coalescer on the market between the activated carbon pre-filter and the desiccant stage. RTi rates it the "best" of its Eliminator® II booth dryers. Choose a ⅜" (EH7000-3R) or ½" (EH7000-4R) outlet regulator.

Key Features

• Designed to provide continuous dry, oil-free air to -40°F dew point.
• 3 in 1: activated carbon pre-filter for superior oil vapor removal and built-in final filter with contained desiccant cartridge — no desiccant dust migration.
• Largest 0.01 micron coalescer on the market.
• Removes water, dirt and oil contamination (removes all oil mist).
• Tool-less spin-on/spin-off elements; comes with two PB-004 brackets for easy mounting.
• Inverse-Flow® Technology, low pressure drop design.
• High flow relieving regulator.
• Automatic drain on first stage, manual petcock drains on second and third stages.

Specifications

• Flow capacity: 30 SCFM at 100 PSI
• Inlet: ½" NPT · Regulator: ⅜" (EH7000-3R) or ½" (EH7000-4R)
• Dew point: -40°F
• Filtration: 0.01 micron and larger; activated carbon oil absorption to 0.003 ppm
• Differential pressure: under 5.0 PSID at rated flow
• Max. pressure 150 PSIG · Recommended temperature 100°F
• Size: 17" H × 16" W × 4.75" D · Weight: 20 lb

What's Included

• Three-stage dryer with regulator and gauge, ½" inlet ball valve, drain hose kit and two PB-004 mounting brackets

Replacement Elements

• 1st stage: 4P-060 — change every 6 months
• 2nd stage: 3C-090 — change every 6 months
• 3rd stage: DE401 — change when the indicator turns pink, or every 3 months (DE406 = 6-pack)

Applications

• Paint booths and prep stations with high contamination
• Shops fighting fisheyes and oil in the finish

Documents & Downloads

Technical literature published by RTi (Reading Technologies, Inc.):

• EH7000-3R spec sheet (PDF)
• EH7000-4R spec sheet (PDF)
• Eliminator® II good / better / best (PDF)
• Eliminator® II service sheet (PDF)
• EH7000 filter & dryer maintenance log (PDF)
• EH7000-3R parts breakdown (PDF)
• EH7000-4R parts breakdown (PDF)

Warranty

RTi stands behind its products and offers a warranty for up to 1 year after date of purchase.

Why Buy RTi From Spray Booth Shop

• Authorized RTi online dealer — genuine Reading Technologies, Inc. product, made by the company that has built paint-air filtration since 1986.
• Free shipping on RTi orders over $1,200.
• Need something custom? RTi builds units around your shop's exact needs. Call us and we'll work it out with them.

CA PROPOSITION 65 WARNING: Cancer and Reproductive Harm — www.P65Warnings.ca.gov/product
