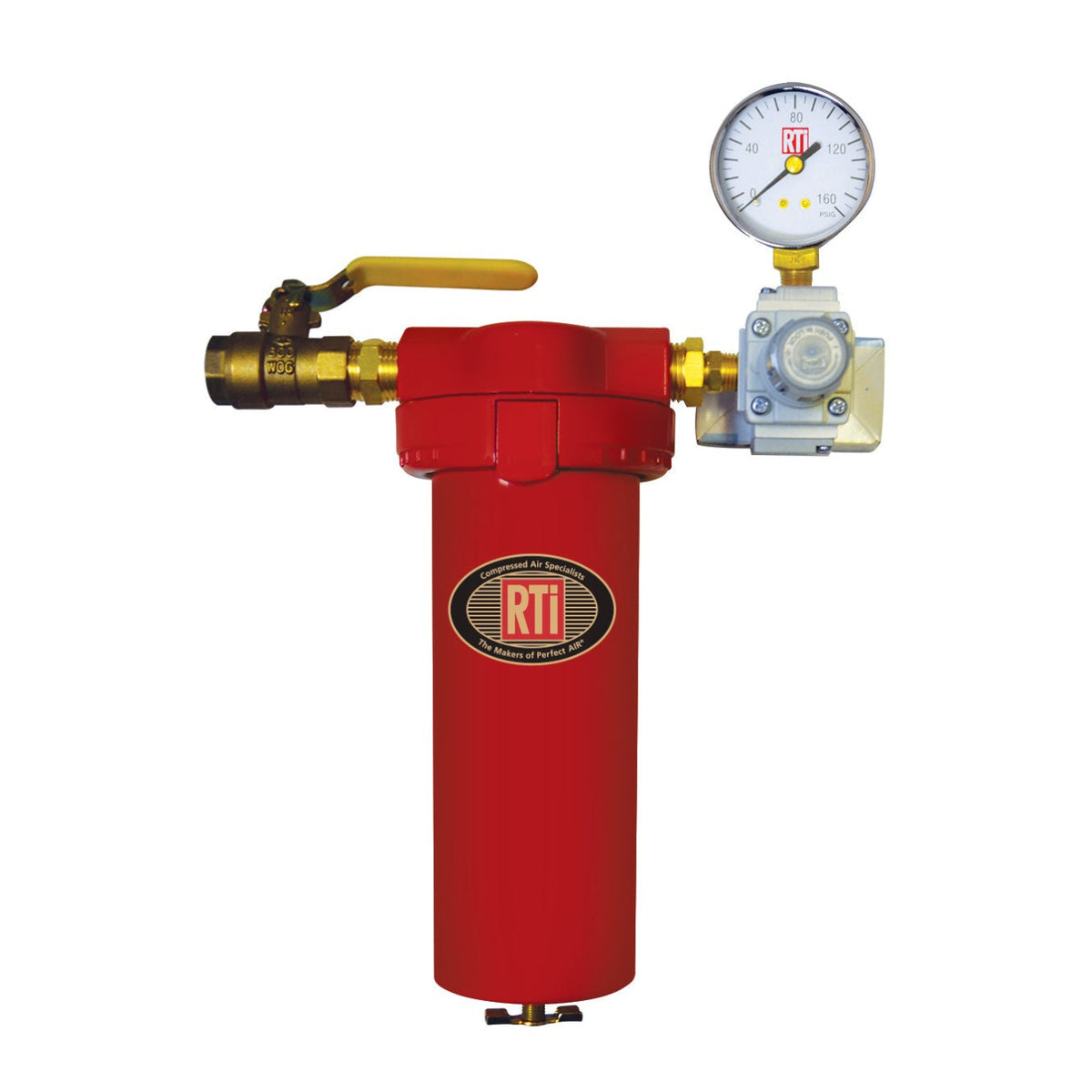

RTi STEALTH 6950B / 6960B Air Tool Saver Filter-Regulator – 60 SCFM, ½" Inlet

Keep water and dirt out of your air tools — and out of the mechanical side of the shop.

RTi's STEALTH tool savers put Inverse-Flow® filtration, a pressure regulator and gauge right at the drop. The STEALTH 6950B removes water and dirt; the STEALTH 6960B removes water, dirt and oil vapor. Both filter to 1.0 micron at up to 60 SCFM and ship with a BK-1 mounting bracket and BV-051 ball valve.

Key Features

• Inverse-Flow® Technology with 3½" filter depth.
• 1.0 micron final filtration, 99.5% effective at water removal.
• Quick disconnect clamp ring design and spin-on/spin-off element — no tools for maintenance.
• Pressure regulator and gauge standard.
• Brass petcock manual drain.
• Heavy duty metal bowl construction, non-corrosive internal metal.
• Extremely long element life.
• ½" BV-051 ball valve and BK-1 bracket included.

Specifications

• Flow: to 60 SCFM
• Inlet: ½" NPT · Regulator: ¼" with gauge
• Max. operating temperature: 125°F
• Max. air pressure: 150 PSIG

What's Included

• BK-1 mounting bracket
• BV-051 ½" ball valve
• ¼" regulator and gauge

Replacement Elements

• STEALTH 6950B: 6950-1 — change every 6–12 months depending on use
• STEALTH 6960B: 6960-1 — change every 6–12 months depending on use

Applications

• Air tools, sand blasting, sanding, impacts, buffing
• Ideal for the mechanical section of the shop

FAQ

Which element does each model use, and how often should I change it?
The STEALTH 6950B uses the 6950-1 element and the STEALTH 6960B uses the 6960-1. Replace the element every 6–12 months depending on use.

What is the difference between the 6950B and the 6960B?
The 6950B removes water and dirt. The 6960B uses the activated carbon 6960-1 element and also removes oil vapor.

How much air flow does it handle?
Both models are rated to 60 SCFM, with a ½" NPT inlet and a ¼" regulator and gauge on the outlet.

Where should I use a STEALTH tool saver?
RTi lists air tools, sand blasting, sanding, impacts and buffing, and calls it ideal for the mechanical section of the shop.

Documents & Downloads

Technical literature published by RTi (Reading Technologies, Inc.):

• STEALTH 6950B spec sheet (PDF)
• STEALTH 6960B spec sheet (PDF)
• STEALTH series overview (PDF)
• STEALTH 6950B / 6960B parts breakdown (PDF)

Warranty

RTi stands behind its products and offers a warranty for up to 1 year after date of purchase.
