Own a Nova Verta booth — likely a Prestige or Raptor series cabin — and need filters? Skip the hunt for a part number. Nova Verta labels fade, get overspray-coated, or go missing, and numbers shift between model years. This guide gets you to the correct ceiling and exhaust filters by model, media type, and size, not by a number that may no longer be valid.
We do not publish fabricated “OEM equivalent” numbers. The two things that never change are the media grade and the frame opening. Match those and any equivalent filter fits.
Why Nova Verta filters vary by model
Nova Verta builds a range of finishing environments — from prep stations to full downdraft production booths like the Prestige and Raptor lines. Each design pushes a specific air volume through a specific filter footprint, so different models call for different ceiling media grades and exhaust configurations. The reliable question is not “what is the Nova Verta part number” — it is “what media and size does my booth use.”
Step 1: Identify your Nova Verta model and airflow
Check the data plate on the control panel or a cabin upright for the model line and serial number. If it is gone, read the airflow:
- Full downdraft: a full filtered ceiling, exhaust pulled down through floor grating to a pit or plenum.
- Semi-downdraft: ceiling intake toward the front, exhaust to the rear.
- Crossflow / prep: front intake with an exhaust filter wall at the back.
The layout tells you which filters to buy. Our guide to downdraft, crossflow, and semi-downdraft booth filters breaks down each pattern.

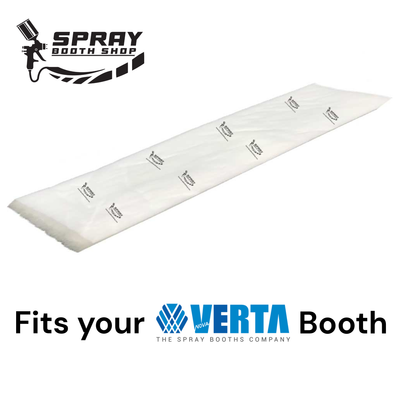

Step 2: Ceiling (intake) blankets — the heart of a Nova Verta
Nova Verta ceiling filters are the last barrier your make-up air passes through before it reaches the vehicle, so they set your finish quality. They are a tackified synthetic diffusion blanket — a progressively-dense polyester media typically rated F5/M5 under EN 779 / ISO 16890 — held in the ceiling grid.
Identify the ceiling media
- Face direction: the denser, tackified side faces down into the cabin. Reversed, it stops diffusing — see the cost of a wrong-side-out install.
- Loft: ceiling blankets are thick and lofted (roughly 20–22 mm), far heavier than an exhaust pad.
- Format: pre-cut pads matched to the ceiling bays, or a continuous roll cut to length.
Common Nova Verta ceiling sizes
Nova Verta ceilings are built on standard grid modules, so replacement blankets come pre-cut to those bays or as a roll you cut down. Rather than trust a size off an old, shrunken pad, measure the opening: width x length for panels, bay width for rolls. Our measuring guide shows exactly where. For a nonstandard bay, order a custom-cut ceiling blanket instead of forcing a stock size. Shop ceiling blanket filters and ceiling intake filters.
Step 3: Exhaust filters
The exhaust side is where compliance lives. Nova Verta booths capture overspray with either fiberglass paint-arrestor pads/rolls (progressive-density spun-glass media under grating or in the plenum) or multi-pocket bag filters on some layouts. Identify yours by looking downstream of the spray zone: a flat spun-glass mat vs. hanging multi-pocket bags. Shop fiberglass pads, fiberglass rolls, and pocket/bag filters. Browse the full range under paint booth exhaust filters.
The 98% exhaust rule (NESHAP 6H)
Your exhaust filter is a regulated control device, not just a consumable. Under the federal area-source rule (NESHAP Subpart 6H, 40 CFR 63.11173(e)(2)(i)), the exhaust filter technology must be demonstrated to capture at least 98% of paint overspray by weight, verified by a recognized method such as ANSI/ASHRAE 52.2-2017 or EPA Method 319 (a 100-gram dust challenge). That standard is arrestance — capture by weight, not a “98% at 3 microns” particle rating, which is vendor shorthand rather than the rule.
So the exhaust side is not a place to improvise. Buy media rated to the 98% standard and keep the efficiency documentation on file. Our NESHAP 6H & NFPA 33 compliance guide and the compliance hub with its certificate library explain what to keep. This is general information, not legal advice — confirm with your state or local air authority.
Nova Verta filter cross-reference at a glance
| Position | Typical Nova Verta media | What to match | Where to buy |
|---|---|---|---|
| Ceiling / intake | Tackified polyester blanket, F5/M5 | Media grade + bay/panel size | Ceiling blankets |
| Exhaust (arrestor) | Progressive fiberglass paint arrestor | Pad thickness + cut size (98% rated) | Fiberglass pads |
| Exhaust (bag) | Multi-pocket synthetic bag | Pocket count + frame size (98% rated) | Pocket/bag filters |
| Odd / discontinued size | Any of the above | Exact opening dimensions | Custom-cut |
How to order the exact Nova Verta replacement
- Confirm the position — ceiling, exhaust, or both.
- Confirm the media — tackified blanket, fiberglass arrestor, or pocket bag.
- Measure the opening — width x length (plus pocket count for bags).
- Match the grade — F5/M5 ceilings; 98%-rated exhaust.
- Order stock or custom.
Not sure what fits? Start with Find My Filter, jump to the Nova Verta filter collection, or compare makes in the exact-fit filter guide for Garmat, GFS, Accudraft and more. Different booth? See our cross-references for Garmat, GFS, Accudraft, Blowtherm, and USI Italia. When the label is gone entirely, our walkthrough on finding your paint booth filter part number and the master filter size chart by brand help you decode any booth.
Frequently asked questions
Do I have to buy genuine Nova Verta filters?
No. Compliance depends on using exhaust media demonstrated to meet the 98%-by-weight capture standard and keeping the documentation — not on the brand on the frame. An equivalent-grade filter cut to your booth’s size satisfies the rule. Check your equipment warranty terms separately.
What size are Nova Verta Prestige and Raptor ceiling blankets?
They follow the standard ceiling grid module for your specific cabin, so there is no single universal size. Measure the ceiling opening (or bay width for rolls) and match that. When a bay falls outside stock sizes, a custom cut gets an exact fit.
My Nova Verta part number is discontinued. How do I reorder?
Ignore the number. Measure the opening, identify the media, and order the equivalent grade. A custom cut covers any nonstandard ceiling size.
When should I change them?
Go by static pressure on your manometer rather than a fixed schedule — change at the booth manufacturer’s limit. See when to replace paint booth filters.
Get the right Nova Verta filter, the first time
Tell us your Nova Verta model, the filter position, and the opening size, and we’ll match the exact media — stock or custom-cut. Browse the Nova Verta filter collection or use Find My Filter, and our team will confirm the fit before you buy — every match is backed by our Fitment & Compliance Guarantee.
